SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts, Optional Parts

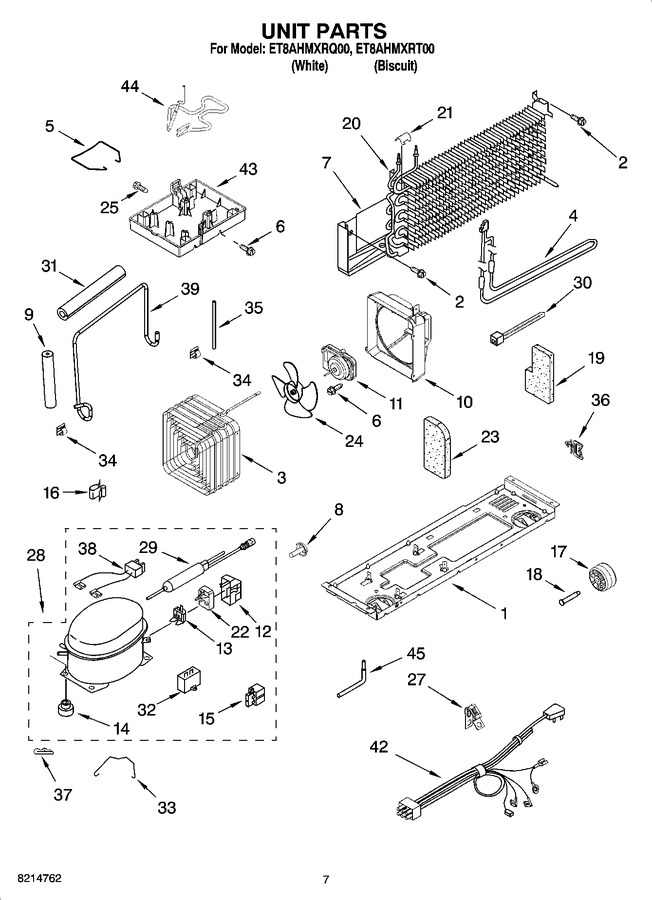

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10222450		Support Plate, Compressor   (Replaces: 2262904)				$ 146.78
2	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
3	WP2264004		Condenser   (Replaces: 2264004)				$ 207.96
4	WP2263749		Heater, Defrost   (Replaces: 2176942)			Immediately	$ 93.70
5	2264835		Clip, Condensor		Appelez-nous	-
6	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.61
7	2264762		Heat Shield		Appelez-nous	-
8	2264516		Snap Rivet		Appelez-nous	-
9	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
10	WP2263929		Air Baffle   (Replaces: 2263929)				$ 94.63
11	W11578915		Motor, Condensor   (Replaces: 2188875)			Immediately	$ 71.42
12	WP2162358		Cover Service Only)   (Replaces: 4387731)				$ 95.29
13	WP2214067		Overload (service Only)   (Replaces: 4390624)				$ 138.24
14	WPW10169124		Grommet (production)   (Replaces: 2264447)			Immediately	$ 7.55
14	WP4387558		Grommet (service)   (Replaces: 4387558)				$ 7.30
15	2183454		Start Relay (service Only)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
18	WP2264756		Axle, Rivet   (Replaces: 2264756)				$ 7.55
19	2262191		Wedge-evaporator		Appelez-nous	-
20	WP2263920		Evaporator Assy.   (Replaces: 2263920)			Immediately	$ 333.22
21	9791833		Clip, Evaporator Tube		Appelez-nous	-
22	WP2225929		Start-device Combination (start Relay And Overload For Production Compressor Only)   (Replaces: 2225929)			Immediately	$ 134.41
23	2262192		Wedge-evaporator		Appelez-nous	-
24	2264129		Fan Blade			Immediately	$ 109.99
25	WP489489		Screw   (Replaces: 2264841)				$ 6.79
27	549193		Clamp-cord				$ 14.06
28	2217634		Compressor (includes Items 12,13,14,15,29, 32 & 38)		Appelez-nous	-
29	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 57.13
29	W10843121		Drier (production)   (Replaces: 2201796)			Immediately	$ 57.13
30	WPW10339879		Strap   (Replaces: 2263990)				$ 8.30
31	2264838		Sleeve				$ 92.28
32	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
32	WPW10662129		Capacitor (production)   (Replaces: 2264017)			Immediately	$ 58.86
33	2212996		Bale Strap				$ 12.72
34	W11501419		Clip, Wiring   (Replaces: 1114718)			Immediately	$ 12.10
35	2264278		Tube, Drain				$ 79.77
36	2266467		Clip, Harness		Appelez-nous	-
37	24364001		Clip, Compressor		Appelez-nous	-
38	WP2172890		Wire Assembly (service Only)   (Replaces: 4387765)				$ 8.51
39	2264131		Extension, Tube-heat				$ 16.87
42	2263753		Wire Assy. Unit				$ 64.42
43	WP2263928		Evaporator Tray   (Replaces: 2263928)				$ 149.02
44	2316181		Tube, Discharge				$ 67.85
45	876764		Valve, Access(3/16``)			Immediately	$ 95.92
45	978026		Vs20001 Tube, Process Following Parts Not Illustrated And Optional Parts Not Included (valve, Access (5/16``))			Immediately	$ 134.49
45	SF5538		Vs20001 Tube, Process Following Parts Not Illustrated And Optional Parts Not Included (valve, Access (3/8``))   (Replaces: 978027)				$ 21.64
45	978028		Vs20001 Tube, Process Following Parts Not Illustrated And Optional Parts Not Included (valve, Access (1/2``))		Appelez-nous	-
45	978029		Vs20001 Tube, Process Following Parts Not Illustrated And Optional Parts Not Included (valve, Access (5/8``))				$ 93.85
45	978030		Vs20001 Tube, Process Following Parts Not Illustrated And Optional Parts Not Included (valve, Access (3/4``))				$ 137.25
45	WP978025		Vs20001 Tube, Process Following Parts Not Illustrated And Optional Parts Not Included (valve, Access (1/4``))   (Replaces: 978025)			Immediately	$ 110.51
