SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional

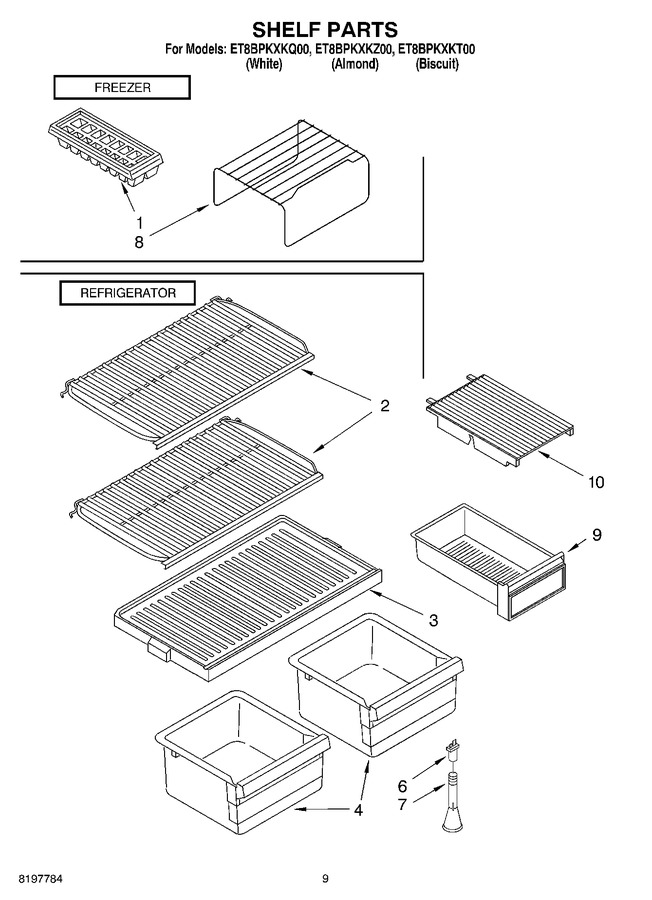

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Ice Tray (2)   (Replaces: 2201793)			Immediately	$ 45.56
2	W11181679		Shelf (2)   (Replaces: 2214064)				$ 251.23
3	WP9791600		Crisper Cover   (Replaces: 9791600)				$ 159.38
4	WP2164186		Crisper Pan   (Replaces: 2164186)			Immediately	$ 129.49
6	9791824		Support, Crisper				$ 44.69
7	836410		Post, Crisper				$ 5.84
8	WPW10401596		Shelf, Ice Tray   (Replaces: 2197398)				$ 82.28
9	2183273		Pan, Meat				$ 61.29
10	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
10	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
10	1117510		Torx Key				$ 5.84
10	350942		Primer White (13 Oz. Spray Can)				$ 89.66
10	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
10	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
10	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
10	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
10	833938		Kit, Terminal Connector				$ 8.07
10	1129316		Eckmf94			Immediately	$ 142.01
10	9790379		Cover, Meat Pan				$ 77.22
10	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
10	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
10	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
10	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
10	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
10	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
10	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
10	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
10	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
10	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
10	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
10	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
10	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
10	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
10	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
10	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56

    View Diagram in Separate Window       Print Part List
