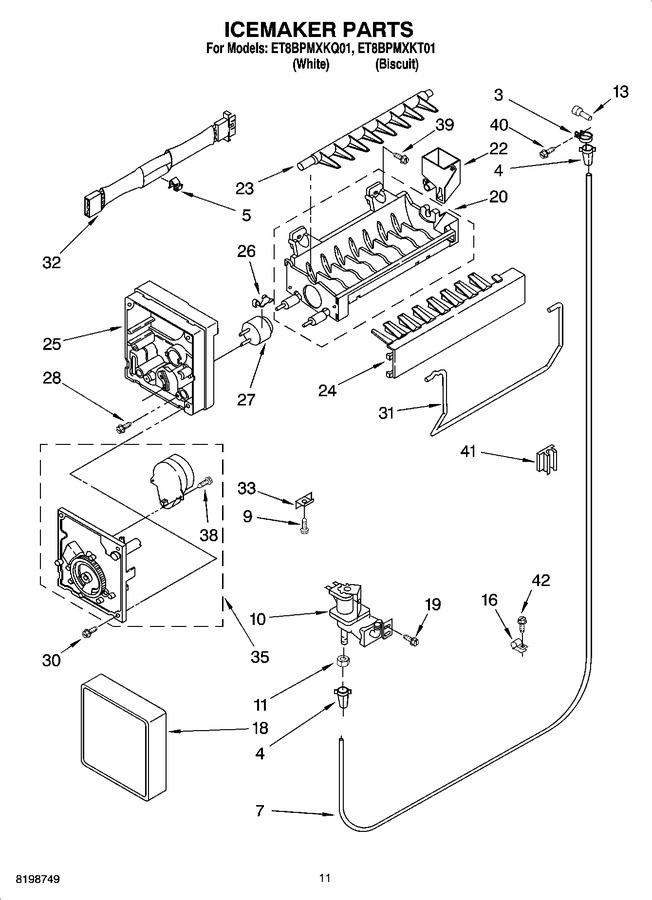

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 12.18
4	4387491		Insert, Tube   (Replaces: 2181939)				$ 8.23
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
7	W10823511		Tube Water   (Replaces: 2181944)			Immediately	$ 32.41
9	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 8.18
10	WP2315576		Valve Solenoid   (Replaces: 2182104)			Immediately	$ 95.98
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 11.51
13	2174755		Tube, Water Inlet				$ 22.18
16	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.92
18	2174157		Cover		Appelez-nous	-
19	WP250830		Screw   (Replaces: 489048)				$ 8.78
20	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: 628228)				$ 233.15
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 53.75
23	WP627843		Ejector   (Replaces: 2194711)				$ 87.78
24	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 90.35
25	WP2195914		Support   (Replaces: 2194712)				$ 109.80
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.60
27	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 627985)				$ 114.64
28	8533917		Screw				$ 14.04
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	WP627792		Shut Off Arm   (Replaces: 627792)				$ 88.76
32	WP2187464		Harness, Wiring   (Replaces: 2187464)				$ 130.80
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 33.78
35	W10190935		Module Assembly (includes Item 38)   (Replaces: 628398)			Immediately	$ 110.07
38	489136		Screw (3-24 X 23/64)				$ 10.80
39	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.92
40	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
41	W11501419		Clip-fill Tube   (Replaces: 2154101)			Immediately	$ 12.10
42	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.72
100	4317943		Complete Icemaker Assembly			Immediately	$ 183.45
	1117510		Torx Key				$ 5.84
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.47
	N/A		Torx Screw Wrench		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	350956		Enamel, Almond (13 Oz. Spray Can)				$ 54.01
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
