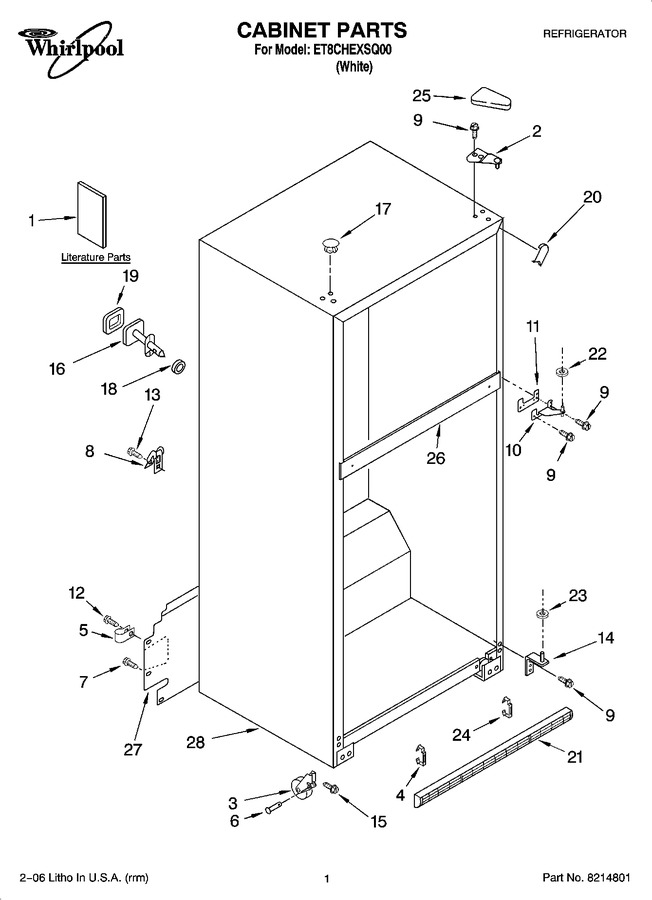

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Icemaker Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2225413 | Customer Instructions |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./fzr. |
|
$ 30.30 | |||||
| 1 | 2314273 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2319809 | Energy Label |
|
- | |||||
| 1 | 2225623 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | 2314472 | Use & Care Guide |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 99.45 | ||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 4 | 2189356 | Clip-grille |
|
$ 5.70 | |||||
| 5 | WP488366 | Clamp, Tube (water Supply Line) (Replaces: 489385) |
|
$ 11.92 | |||||
| 6 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 7 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 8 | 549193 | Clamp-cord |
|
$ 14.06 | |||||
| 9 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 10 | WP2254618 | Hinge, Center (Replaces: 2183972) |
|
Immediately | $ 92.02 | ||||
| 11 | WP2183854 | Shim, Hinge Center (Replaces: 2183854) |
|
$ 11.43 | |||||
| 12 | WP488787 | Screw (Replaces: 488886) |
|
$ 11.26 | |||||
| 13 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 8.38 | ||||
| 14 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 9.28 | |||||
| 15 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 7.55 | |||||
| 17 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 20 | WPW10283959 | Corner Filler (2) (white) (Replaces: 2201014) |
|
$ 8.21 | |||||
| 21 | WP2254386 | Grille (includes Illus. 4 & 24) (white) (Replaces: 2254386) |
|
$ 99.26 | |||||
| 22 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 23 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 24 | 2254385 | Clip-grille |
|
$ 88.87 | |||||
| 25 | WP2213360 | Cover-hinge (white) (Replaces: 2213360) |
|
$ 20.19 | |||||
| 27 | 2221775 | Cover, Unit |
|
- |
