SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts

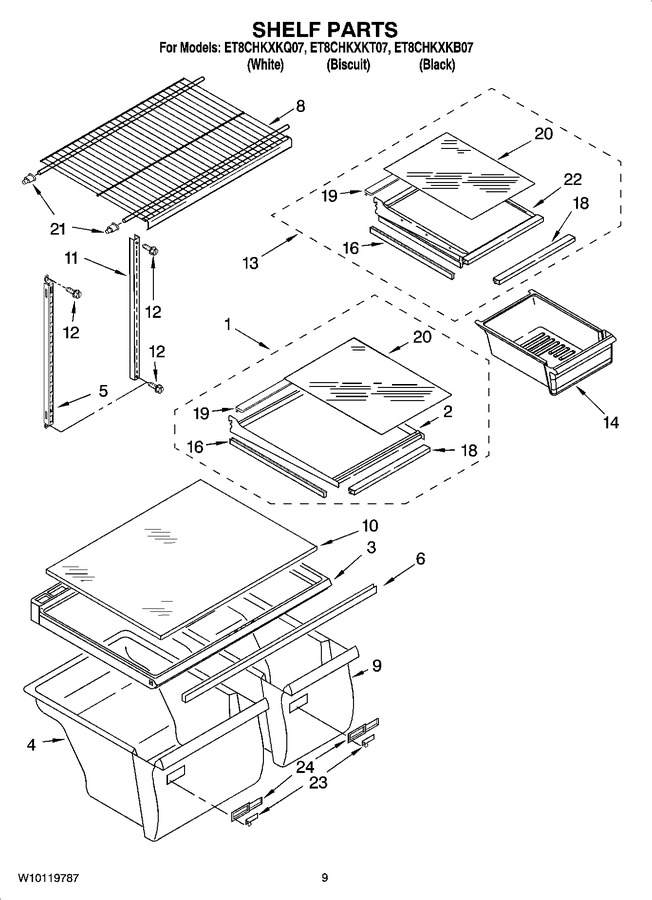

05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2201107K		Shelf, Cantilever (complete)				$ 169.02
2	2201101E		Shelf, Cantilever		Appelez-nous	-
3	WP2314548		Cover, Crisper   (Replaces: 2314495)				$ 247.46
4	W10854037		Crisper Pan (13-inch) (includes Illus. 23 & 24)   (Replaces: 2218130)			Immediately	$ 170.66
5	2300520		Shelf, Ladder				$ 75.36
6	WP2172748		Support, Crisper Cover   (Replaces: 2314477)				$ 97.22
8	WP2176275		Shelf   (Replaces: 2176275)				$ 123.40
9	W10856580		Crisper Pan (10-inch) (includes Illus. 23 & 24)   (Replaces: 2218129)			Immediately	$ 168.60
10	WP2169921		Glass, Crisper Cover   (Replaces: 2221693)				$ 246.60
11	2210522		Shelf, Ladder (2)				$ 44.10
12	WP489478		Screw   (Replaces: 489478)				$ 7.75
13	2201111		Shelf, Cantilever Meat Pan (complete)				$ 168.49
14	WP2218127K		Meat Pan   (Replaces: 2218127K)				$ 139.81
16	2188711		Trim, Shelf Side		Appelez-nous	-
18	2188684		Trim, Shelf Front				$ 11.33
19	WP2188689		Trim, Shelf (rear)   (Replaces: 2188686)				$ 115.76
20	2200985		Glass, Half Shelf		Appelez-nous	-
21	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.00
22	2201105		Pan Shelf, Cantilever				$ 78.45
23	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
24	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.06
	1117510		Torx Key				$ 5.84
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	350942		Customer Touch-up Material Primer, White (12 Oz. Spray Can)				$ 89.66
	285006		Customer Touch-up Material (enamel, Black) (12 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	4392899		Customer Touch-up Material Brush Touch-up Kit (biscuit)			Immediately	$ 26.45
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.07
	W11729596		Field Installable Ice Maker (eckmf94)   (Replaces: 2155469)			Immediately	$ 150.98
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56

    View Diagram in Separate Window       Print Part List
