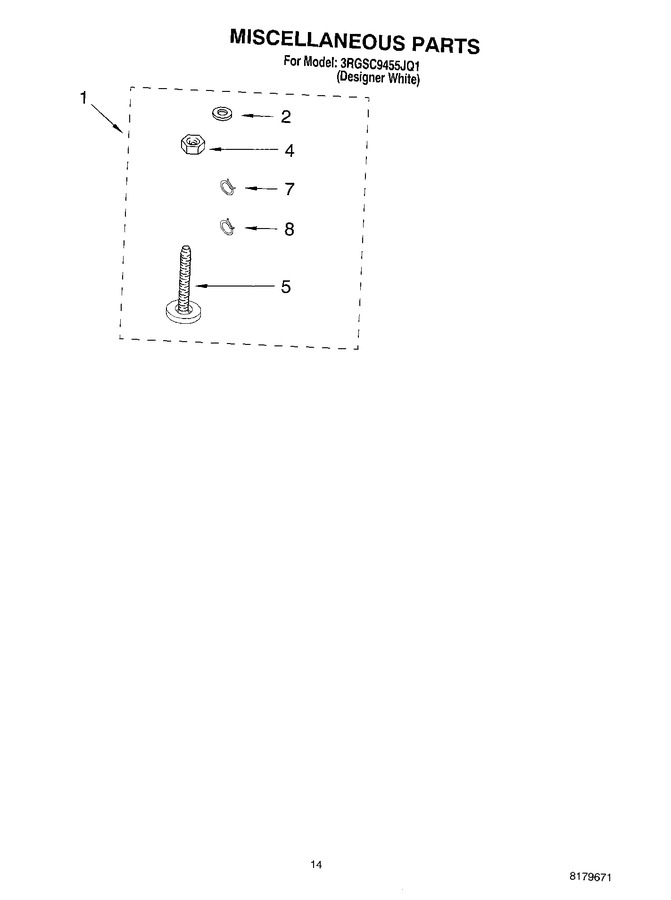

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8316044		Miscellaneous Parts Bag		Appelez-nous	-
2	WP16123		Washer   (Replaces: 16123)				$ 7.70
4	WP3359452		Nut, Lock (3/8-16)   (Replaces: 3359452)			Immediately	$ 7.19
5	WPW10001130		Foot, Front (2)   (Replaces: 389102)			Immediately	$ 7.80
7	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 8.52
8	WP3357331		Clamp, Hose   (Replaces: 3366913)				$ 7.56
NI	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
NI	76660		Siphon Break Kit   (Replaces: 285320)			Immediately	$ 133.25
NI	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)			Immediately	$ 104.39
NI	N/A		Accessory Parts		Appelez-nous	-
NI	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
NI	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
NI	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
NI	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 91.61
NI	3348675		Shipping Kit		Appelez-nous	-
NI	367031		Drain Protector		Appelez-nous	-
