SELECT A DIAGRAM

01 - Cabinet Parts

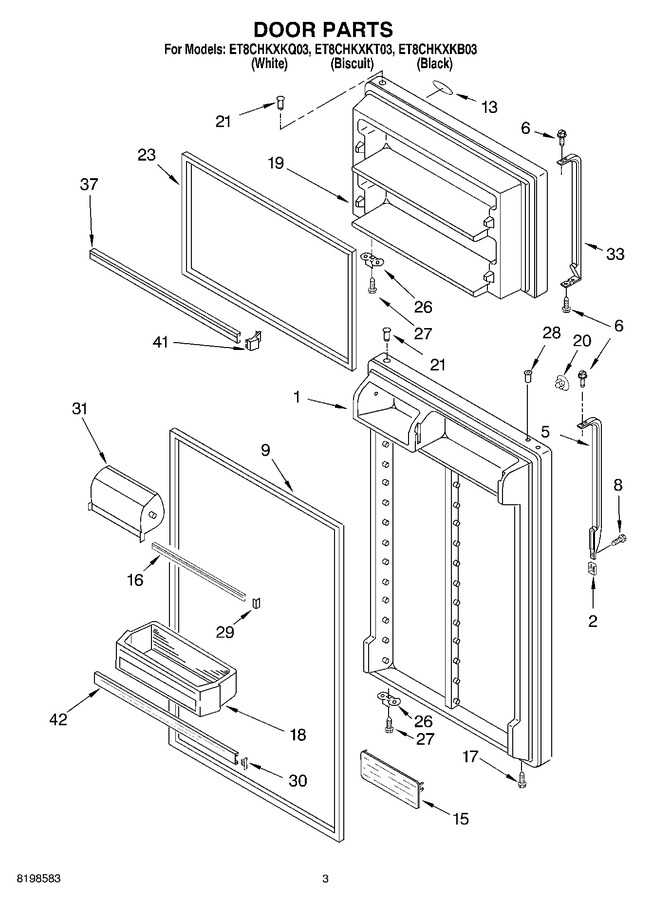

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205281		Refrigerator Door (includes 9 & 21) (biscuit)		Appelez-nous	-
1	2200712		Refrigerator Door (includes 9 & 21) (black)		Appelez-nous	-
1	2183898		Refrigerator Door (includes 9 & 21) (white)		Appelez-nous	-
2	WP2193353W		Cover, Endcap (white)   (Replaces: 2193353W)				$ 8.52
2	2193353B		Cover, Endcap (black)				$ 5.85
2	2193353T		Cover, Endcap (biscuit)		Appelez-nous	-
5	4388950		Handle Center (black)   (Replaces: 2213112B)				$ 235.81
5	4388947		Handle Center (white)   (Replaces: 2213112W)				$ 204.47
5	2213112T		Handle Center (biscuit)		Appelez-nous	-
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	2159057		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202874)			Immediately	$ 164.66
9	2177305		Door Gasket, Magnetic (black)   (Replaces: 2202881)				$ 274.07
13	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
15	WP2188234		Shelf, Flip-up   (Replaces: 2188234)			Immediately	$ 60.31
16	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 124.32
17	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
18	WP2204810		Door Bin (3)   (Replaces: 2204810)				$ 83.57
19	2200710		Freezer Door Panel (black)		Appelez-nous	-
19	2205279		Freezer Door Panel (biscuit)		Appelez-nous	-
19	2182487		Freezer Door Panel (white)		Appelez-nous	-
20	WP2189009		Hole Plug (black)   (Replaces: 2189009)				$ 7.61
20	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.97
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.77
21	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
23	2177304		Door Gasket, Magnetic (black)   (Replaces: 2214968)				$ 225.08
23	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
28	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 24.21
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.99
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	WP2218113		Compartment Door   (Replaces: 2218113)			Immediately	$ 50.33
33	4388947		Handle, F.c. (white)   (Replaces: 2213111W)				$ 204.47
33	2213111T		Handle, F.c. (biscuit)		Appelez-nous	-
33	4388950		Handle, F.c. (black)   (Replaces: 2213111B)				$ 235.81
37	2195946		Trim-door (2)				$ 46.58
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 13.18
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 136.25

    View Diagram in Separate Window       Print Part List
