SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf


06 - Ice Maker, Optional

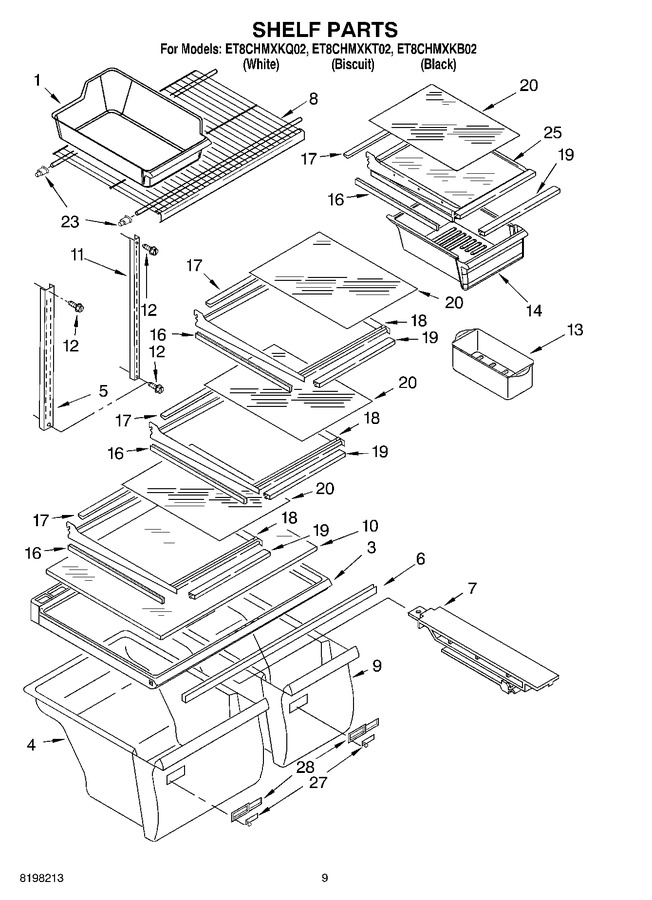

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254352A		Ice Bucket   (Replaces: 2176219)				$ 55.85
3	WP2314548		Cover, Crisper   (Replaces: 2200768)				$ 247.46
4	W10854037		Crisper Pan Includes 27, 28   (Replaces: 2218141)			Immediately	$ 170.66
5	2202821		Shelf, Ladder		Appelez-nous	-
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 97.22
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 34.74
8	WP2176275		Shelf   (Replaces: 2176275)				$ 123.40
9	W10856580		Crisper Pan Includes 27, 28   (Replaces: 2218140)			Immediately	$ 168.60
10	WP2169921		Glass, Crisper Cover   (Replaces: 2169921)				$ 246.60
11	2210522		Shelf, Ladder (2)				$ 44.10
12	WP489478		Screw   (Replaces: 489478)				$ 7.75
13	W10136387A		Egg Bin   (Replaces: 2216624)				$ 18.61
14	WP2218127K		Meat Pan   (Replaces: 2218127K)				$ 139.81
16	2188517		Trim, Shelf Side				$ 54.51
17	WP2188689		Trim, Shelf Rear   (Replaces: 2188520)				$ 115.76
18	2201101E		Shelf, Catnilever		Appelez-nous	-
19	2188525		Trim, Shelf Front		Appelez-nous	-
20	2200985		Glass, Half Shelf		Appelez-nous	-
23	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.00
25	2201111		Assembly, Shelf Meat Pan				$ 168.49
27	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
28	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.06

    View Diagram in Separate Window       Print Part List
