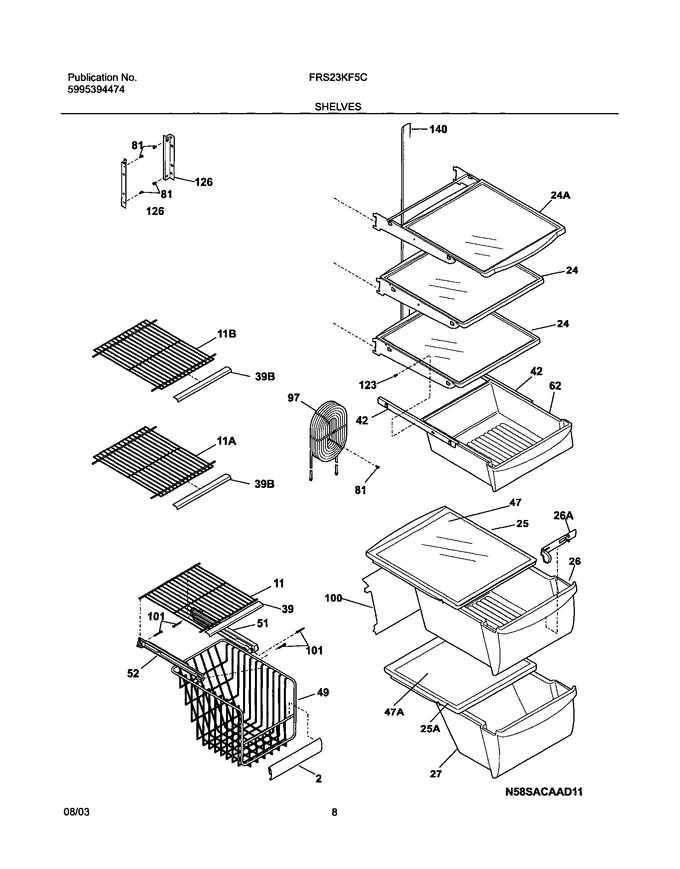

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	240434603		Trim-basket		Appelez-nous	-
11	241657601		Shelf-freezer,flip-up   (Replaces: 240338801)				$ 88.31
24	240355211		Shelf-``spill-safe``,fixed				$ 224.07
25	240354502		Cover-crisper Pan,upper			Immediately	$ 111.13
26	240354723		Pan-crisper,upper   (Replaces: 240354705)			Immediately	$ 182.57
27	240354805		Pan-crisper,lower   (Replaces: 240354807)				$ 186.32
39	240430705		Trim-shelf,front				$ 60.43
42	240365401		Track,meat Pan Hanger ,lh			Immediately	$ 56.95
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 63.00
47	240350613		Insert-pan Cover,glass   (Replaces: 240350635)				$ 137.35
49	240530401		Basket-sliding				$ 191.13
51	240343002		Hanger-basket,rh				$ 72.47
52	240343102		Hanger-basket,lh				$ 77.52
62	240355527		Pan-meat   (Replaces: 240355506)				$ 204.51
81	5304455650		Screw   (Replaces: 5308016566)				$ 15.75
97	240545302		Water Tank Assy,coiled Tubing ,front Filter   (Replaces: 240545303)				$ 311.85
100	240326303		Cover-water Tank   (Replaces: 240326301)				$ 68.09
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 14.96
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 0.438   (Replaces: 215005100)				$ 16.54
126	241674401		Channel,auger Mtg ,lh   (Replaces: 218867405)				$ 52.76
126	241674402		Channel,auger Mtg ,rh   (Replaces: 218867406)				$ 48.04
140	240430501		Channel,wtr Tube Cover				$ 108.68
11A	5304532465		Shelf-freezer,fixed Wire   (Replaces: 240338701)				$ 60.11
11B	240338703		Shelf-freezer,fixed Wire		Appelez-nous	-
24A	240355277		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350107)				$ 237.63
25A	240354602		Cover-crisper Pan,lower				$ 98.29
26A	240351101		Control-humidity				$ 48.83
39B	240430701		Trim-shelf,front				$ 69.30
47A	240350614		Insert-pan Cover,glass				$ 161.78
NI	240349801		Clip-slide,pan-crisper				$ 22.75
NI	240362101		Clip-slide,cover-crisper				$ 52.25
NI	240572166		Label-energy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
