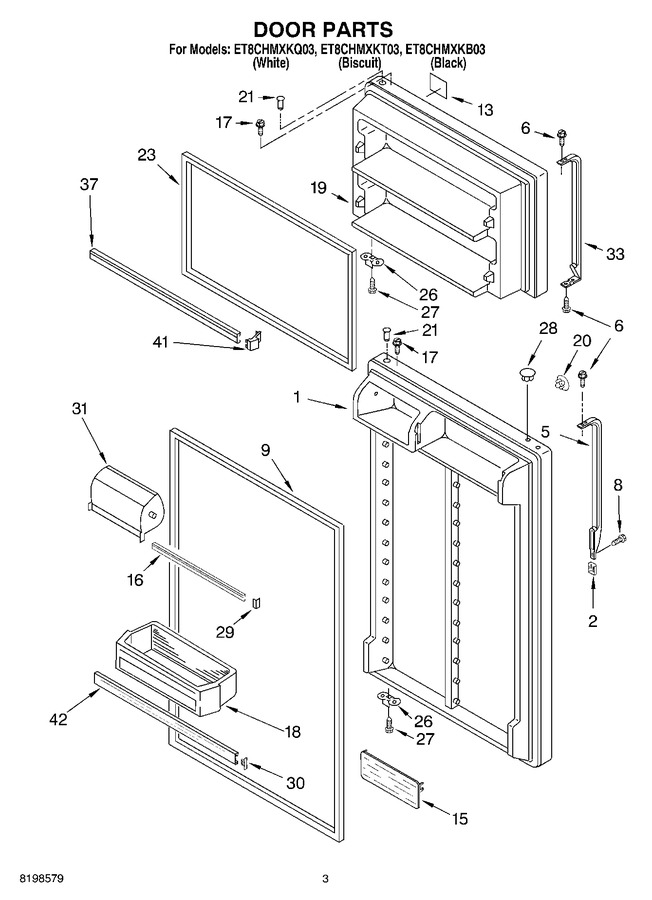

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2205281 | Refrigerator Door (includes 9 & 21) (biscuit) |
|
- | |||||
| 1 | 2200712 | Refrigerator Door (includes 9 & 21) (black) |
|
- | |||||
| 1 | 2183898 | Refrigerator Door (includes 9 & 21) (white) |
|
- | |||||
| 2 | 2193353B | Cover, Endcap (black) |
|
$ 5.85 | |||||
| 2 | WP2193353W | Cover, Endcap (white) (Replaces: 2193353W) |
|
$ 8.11 | |||||
| 2 | 2193353T | Cover, Endcap (biscuit) |
|
- | |||||
| 5 | 4388950 | Handle Center (black) (Replaces: 2213112B) |
|
$ 224.58 | |||||
| 5 | 4388947 | Handle Center (white) (Replaces: 2213112W) |
|
$ 194.73 | |||||
| 5 | 2213112T | Handle Center (biscuit) |
|
- | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 7.56 | |||||
| 9 | 2159057 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202874) |
|
Immediately | $ 164.66 | ||||
| 9 | 2177305 | Door Gasket, Magnetic (black) (Replaces: 2202881) |
|
$ 274.07 | |||||
| 13 | 2175383 | Nameplate (white) |
|
- | |||||
| 13 | 2200944 | Nameplate (black) |
|
- | |||||
| 13 | 2205769 | Nameplate (biscuit) |
|
- | |||||
| 15 | WP2188234 | Shelf, Flip-up (Replaces: 2188234) |
|
Immediately | $ 57.44 | ||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 118.40 | |||||
| 17 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.94 | |||||
| 18 | WP2204810 | Door Bin (3) (Replaces: 2204810) |
|
$ 79.59 | |||||
| 19 | 2200710 | Freezer Door (black) |
|
- | |||||
| 19 | 2182487 | Freezer Door (white) |
|
- | |||||
| 19 | 2205279 | Freezer Door (biscuit) |
|
- | |||||
| 20 | WP2200936 | Hole Plug (biscuit) (Replaces: 2200936) |
|
$ 7.59 | |||||
| 20 | WP2189009 | Hole Plug (black) (Replaces: 2189009) |
|
$ 7.25 | |||||
| 20 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 21 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 23 | 2177304 | Door Gasket, Magnetic (black) (Replaces: 2214968) |
|
$ 225.08 | |||||
| 23 | 2159327 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214966) |
|
Immediately | $ 164.58 | ||||
| 26 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw Page. (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.80 | ||||
| 28 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 23.06 | |||||
| 28 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.61 | |||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.65 | ||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 31 | WP2218113 | Compartment Door (Replaces: 2218113) |
|
Immediately | $ 50.33 | ||||
| 33 | 4388947 | Handle, F.c. (white) (Replaces: 2213111W) |
|
$ 194.73 | |||||
| 33 | 2213111T | Handle, F.c. (biscuit) |
|
- | |||||
| 33 | 4388950 | Handle, F.c. (black) (Replaces: 2213111B) |
|
$ 224.58 | |||||
| 37 | 2195946 | Trim-door (2) |
|
$ 46.58 | |||||
| 41 | WP2195916K | Endcap (4) (Replaces: 2195916) |
|
Immediately | $ 12.55 | ||||
| 42 | WPW10421484 | Trim, Door (Replaces: 2195949) |
|
$ 129.76 |
