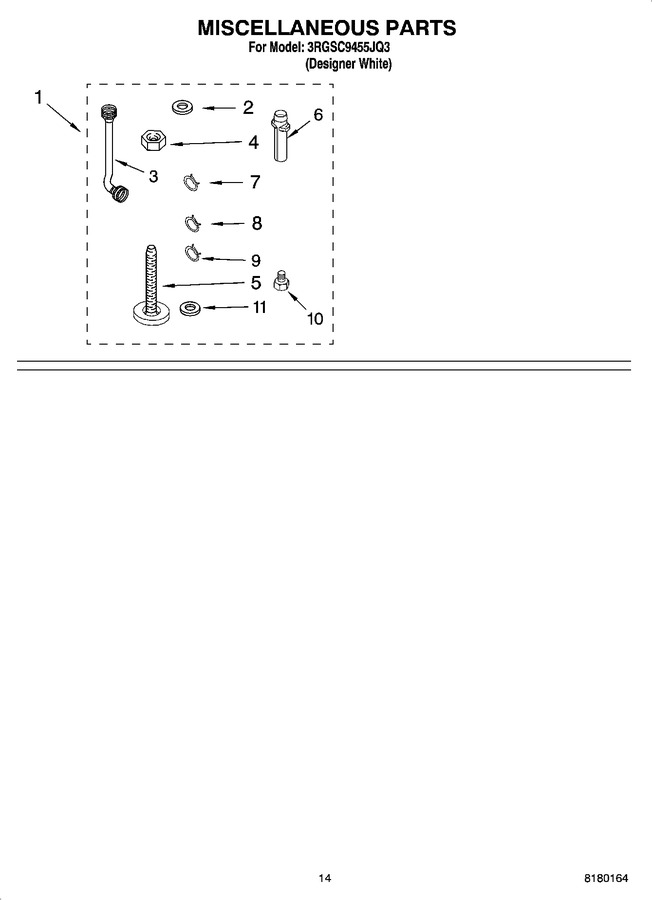

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8541754 | Miscellaneous Parts Bag |
|
- | |||||
| 2 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 7.70 | |||||
| 3 | WPW10615831 | Hose, Water Inlet (red) (Replaces: 3949382) |
|
$ 98.71 | |||||
| 3 | WPW10615809 | Hose, Water Inlet (blue) (Replaces: 3949383) |
|
$ 99.72 | |||||
| 4 | WP3359452 | Nut, Lock (2) (3/8-16) (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 5 | WPW10001130 | Foot, Front (2) (Replaces: 389102) |
|
Immediately | $ 7.80 | ||||
| 6 | 3363920A | Adapter-drain Hose (Replaces: 3363920) |
|
$ 8.79 | |||||
| 7 | WP356138 | Clamp, Hose (Replaces: 3366912) |
|
Immediately | $ 8.52 | ||||
| 8 | WP3357331 | Clamp, Hose (Replaces: 3366913) |
|
$ 7.56 | |||||
| 9 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 10 | WP3357397 | Adapter, Hose (2) (Replaces: 3357397) |
|
$ 89.25 | |||||
| 11 | WP285195 | Sealer, Gasket (20 Fl. Oz.) (6 Ml) (Replaces: 285195) |
|
Immediately | $ 104.39 | ||||
| 11 | 367031 | Drain Protector |
|
- | |||||
| 11 | 76660 | Siphon Break Kit (Replaces: 285320) |
|
Immediately | $ 133.25 | ||||
| 11 | N/A | Accessory Parts |
|
- | |||||
| 11 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 11 | WP3357450 | Washer, Hose Adapter (2) (Replaces: 3976290) |
|
$ 11.01 | |||||
| 11 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 11 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 11 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 11 | 350572 | Oil, Gearcase (16 Oz.) |
|
Immediately | $ 91.61 | ||||
| 11 | 285208 | Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin) |
|
$ 41.86 |
