SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Icemaker Parts, Optional Parts

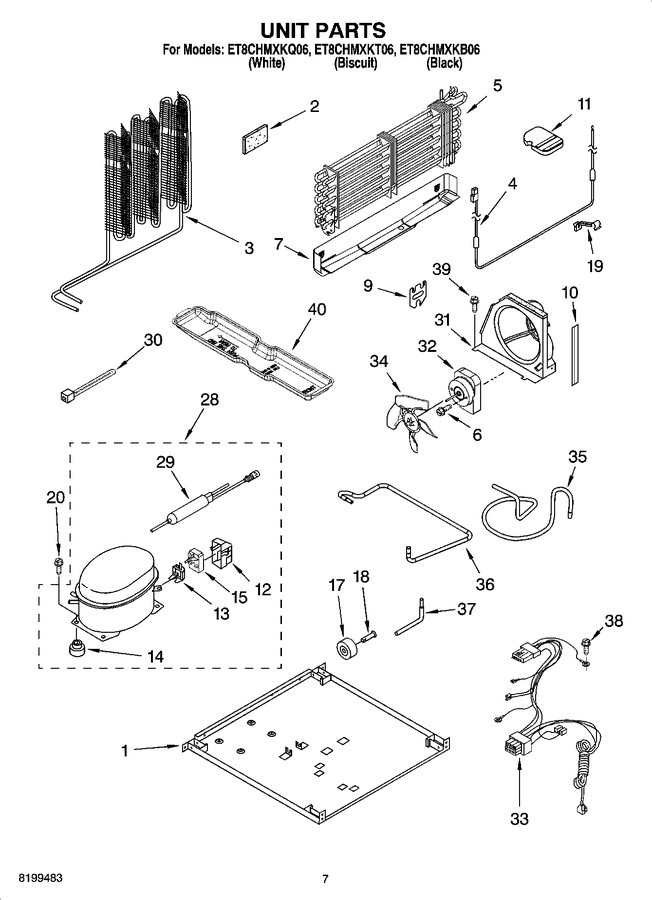

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2225597		Plate, Unit Mounting		Appelez-nous	-
2	W11553819		Insulation, Sound Dampening   (Replaces: 2169104)			Immediately	$ 14.07
3	2214960		Condenser				$ 141.57
4	WP2315531		Heater, Defrost   (Replaces: 2315531)				$ 104.62
5	2254250		Evaporator Assy.				$ 234.07
6	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.06
7	2254294		Drain Pan		Appelez-nous	-
9	2176301		Bracket, Heater				$ 6.37
10	2300638		Extension, Air Baffle				$ 52.69
11	2201184		Support Block				$ 6.43
12	WP2162358		Cover (production)   (Replaces: 2162358)				$ 90.75
12	WP2162358		Cover ((service))   (Replaces: 4387731)				$ 90.75
13	WP2302290		Overload (production)   (Replaces: 2302290)				$ 133.54
13	WP4387938		Overload (service (includes Relay))   (Replaces: 4387938)				$ 189.12
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
15	WP2258450		Start-device (production Compressor Only)   (Replaces: 2258450)				$ 112.82
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw, Compressor   (Replaces: 489373)				$ 7.42
28	W10823815		Compressor (includes Items 12,13,14,29)   (Replaces: 2225647)				$ 674.15
29	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 52.57
29	W10843121		Drier (production)   (Replaces: 2199167)			Immediately	$ 52.57
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.90
31	2302249		Air Baffle				$ 37.70
32	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
33	2187764		Wire Assy. Unit				$ 258.93
34	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
35	2205294		Tube, Discharge				$ 54.65
36	2205293		Tube, Suction				$ 98.29
37	W11676464		Tube, Process   (Replaces: 2212848)				$ 103.44
38	WP489128		Screw   (Replaces: 488500)				$ 10.88
39	3400518		Screw				$ 12.98
40	N/A		Refrigerant Charge 4.00 Ozs. (r134a)		Appelez-nous	-
40	978028		Valve, Access (1/2)		Appelez-nous	-
40	978029		Valve Access (5/8``)				$ 93.85
40	978030		Valve, Access (3/4``)				$ 130.71
40	876764		Valve, Access(3/16``)			Immediately	$ 91.35
40	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
40	8201826		Evaporator Tray   (Replaces: 2300635)				$ 156.93
40	978026		Valve, Access (5/16``)			Immediately	$ 128.09
40	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
