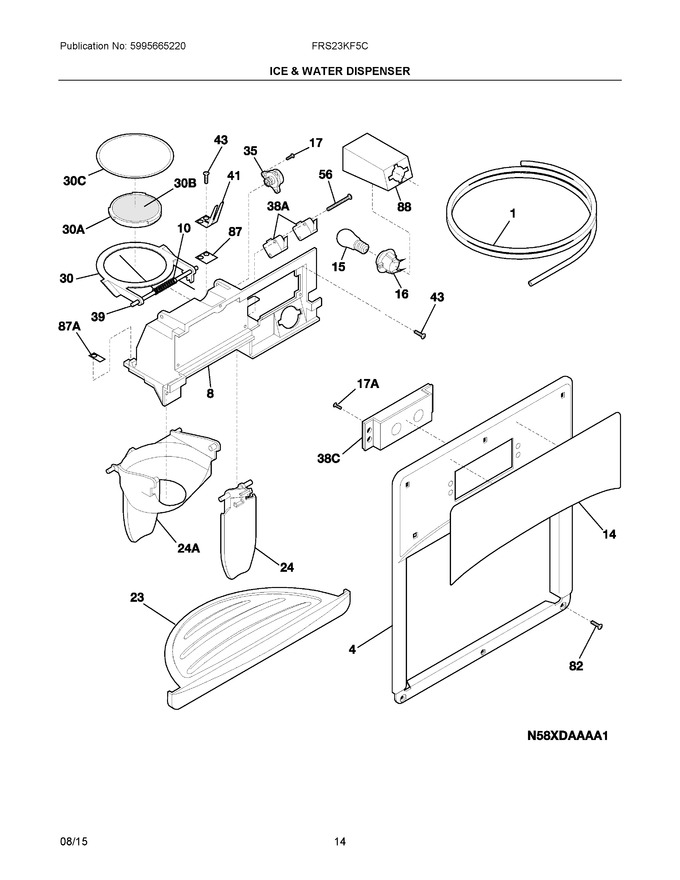

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube-water |
|
Immediately | $ 66.94 | ||||
| 4 | 241679001 | Cover-module, White (Replaces: 5304433188) |
|
$ 84.12 | |||||
| 8 | 5304422030 | Module-dispenser |
|
- | |||||
| 10 | 241688901 | Spring-torsion (Replaces: 5304426649) |
|
Immediately | $ 23.63 | ||||
| 14 | 240570236 | Label-module Cover, White (Replaces: 240570204) |
|
$ 37.64 | |||||
| 15 | 5304421616 | Light Bulb |
|
$ 32.45 | |||||
| 16 | 240548901 | Socket-light |
|
$ 70.78 | |||||
| 17 | 241679801 | Screw (Replaces: 5304421619) |
|
$ 15.75 | |||||
| 23 | 241649007 | Drip Tray, White (Replaces: 240323601) |
|
$ 32.87 | |||||
| 24 | 241682001 | Actuator-water, White (Replaces: 5304421825) |
|
Immediately | $ 63.79 | ||||
| 30 | 241688401 | Door Assy-ice Chute (Replaces: 5304421628) |
|
$ 55.13 | |||||
| 35 | 241689301 | Damper-rotary (Replaces: 5304421620) |
|
$ 78.36 | |||||
| 39 | 241688801 | Pin-hinge (Replaces: 5304421627) |
|
$ 48.04 | |||||
| 41 | 241689001 | Spring-actuator (Replaces: 5304421829) |
|
$ 24.41 | |||||
| 43 | 215296300 | Screw, Plask H/l, #6 X 3/8 |
|
- | |||||
| 56 | 241689201 | Screw-micro Switch, Pan Head (Replaces: 5304421830) |
|
$ 14.96 | |||||
| 82 | 5304453707 | Screw-#8-18 X 1/2, #6 Hd Plask (Replaces: 240363401) |
|
Immediately | $ 17.69 | ||||
| 87 | 241688302 | Bearing Plate (Replaces: 5304421622) |
|
$ 22.05 | |||||
| 88 | 5304421615 | Shield-light |
|
- | |||||
| 17A | 5304433185 | Screw, Switch Mtg. |
|
- | |||||
| 24A | 241681901 | Actuator-ice, White (Replaces: 5304421826) |
|
$ 89.78 | |||||
| 30A | 241688501 | Door Center (Replaces: 5304421624) |
|
$ 58.85 | |||||
| 30B | 241688601 | Insulation-door (Replaces: 5304421625) |
|
$ 70.19 | |||||
| 30C | 241688701 | Door Seal (Replaces: 5304421629) |
|
$ 44.95 | |||||
| 38A | 241689106 | Switch-micro, Single Pole, Double Throw (Replaces: 5304421617) |
|
Immediately | $ 9.56 | ||||
| 38C | 5304525097 | Switch (Replaces: 5304430836) |
|
$ 115.44 | |||||
| 87A | 241688301 | Bearing Plate (Replaces: 5304421621) |
|
$ 22.05 | |||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 526.84 | |||||
| NI | 218515401 | Clip |
|
$ 19.69 | |||||
| NIA | 218976901 | Tube-water Inlet, Inlet Valve, To Ice Maker |
|
Immediately | $ 90.56 | ||||
| NIAA | 5304430839 | Harness-wiring |
|
- | |||||
| NIB | 218976903 | Tube-water Inlet, Inlet Valve, To Filter |
|
$ 77.96 | |||||
| NIC | 218976907 | Tube-water Inlet, Valve To Door |
|
$ 67.73 | |||||
| NICA | 241873301 | Harness-wiring (Replaces: 5304430837) |
|
$ 12.39 |
