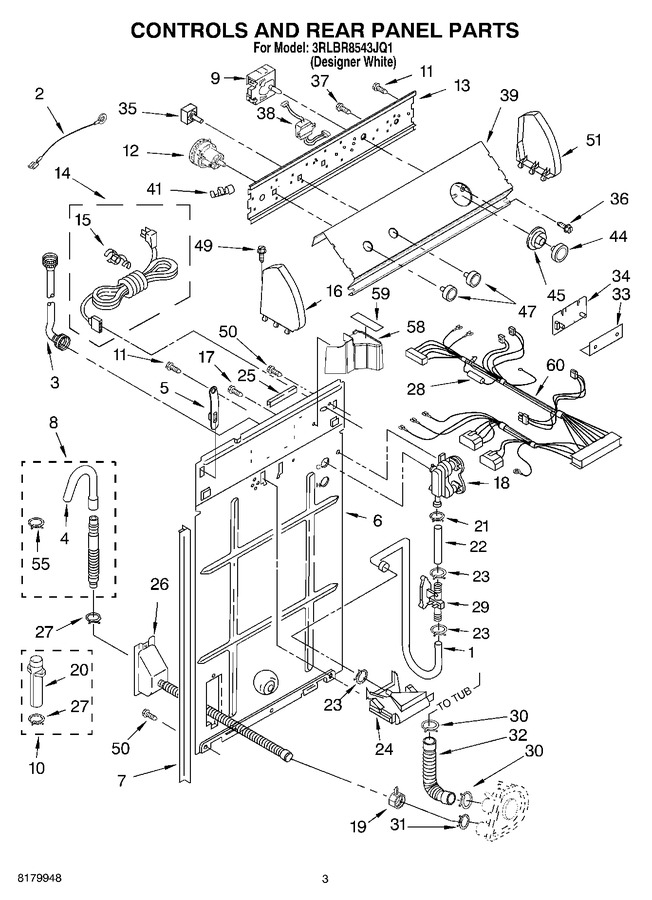

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3363509		Hose, Sensor (lower)		Appelez-nous	-
2	3398893		Wire, Ground		Appelez-nous	-
3	WPW10615809		Blue   (Replaces: 3949383)				$ 104.71
3	WPW10615831		Red   (Replaces: 3949382)				$ 103.65
4	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 97.86
5	WP8568314		Strap, Console (2)   (Replaces: 8318255)				$ 8.17
6	8318407		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 63.94
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
9	3954730		Timer, Control (50 Hz.) (motor Not A Service Part)				$ 207.14
10	285750		(kit-adapter) (includes. Item) (20. And 27.)		Appelez-nous	-
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
12	W10820051		Switch, Water Level   (Replaces: 3366848)			Immediately	$ 169.68
13	3948814		Bracket, Control		Appelez-nous	-
14	8316047		Cord, Power		Appelez-nous	-
15	3949468		Strain Relief, Power Cord		Appelez-nous	-
16	8271369		Cap, End (l.h.)		Appelez-nous	-
17	WP3351614		Screw   (Replaces: 3351614)			Immediately	$ 7.30
18	WP3360397		Valve, Water Mixing   (Replaces: 3360397)				$ 302.44
19	3976395		Clamp, Hose				$ 11.96
20	3363920A		Adapter-drain Hose   (Replaces: 3363920)				$ 9.23
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
22	3363516		Hose, Sensor (upper)		Appelez-nous	-
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
24	WP3347034		Break, Vacuum   (Replaces: 3347034)			Immediately	$ 75.28
25	303294		Edge Protector		Appelez-nous	-
26	WPW10358149		Assembly, Drain Hose   (Replaces: 8317940)			Immediately	$ 48.16
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
28	WPW10111181		Fuse (in Harness)   (Replaces: 3951198)				$ 34.81
29	3352282		Sensor, Inline				$ 66.68
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 8.58
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.81
32	285871		Hose, Pump To Tub   (Replaces: 3951449)			Immediately	$ 28.99
33	8316039		Shield, Atc		Appelez-nous	-
34	WPW10110247		Control, Atc   (Replaces: 3407159)				$ 135.91
35	3950352		Switch, Water Temperature		Appelez-nous	-
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 8.81
37	3179795		Screw, Ground		Appelez-nous	-
38	3407160		Transformer		Appelez-nous	-
39	8318782		Panel, Console		Appelez-nous	-
41	W10113937		Clip, Grounding   (Replaces: 357572)				$ 11.37
44	W10807860		Knob, Timer   (Replaces: 8271345)			Immediately	$ 52.47
45	WP3957849		Dial, Timer   (Replaces: 8271351)				$ 48.07
47	WP3957799		Knob, Control   (Replaces: 8271339)				$ 55.06
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 9.29
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
51	8271363		Cap, End (r.h.)		Appelez-nous	-
55	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 8.19
58	8314879		Shield, Inlet Valve		Appelez-nous	-
59	3950829		Shield Extension		Appelez-nous	-
60	WP3357450		Washer, Hose Adapter   (Replaces: 3976290)				$ 11.56
60	3956189		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
60	N/A		Following Parts Not Illustrated		Appelez-nous	-
60	WP3357397		Hose Adapter   (Replaces: 3357397)				$ 93.71
