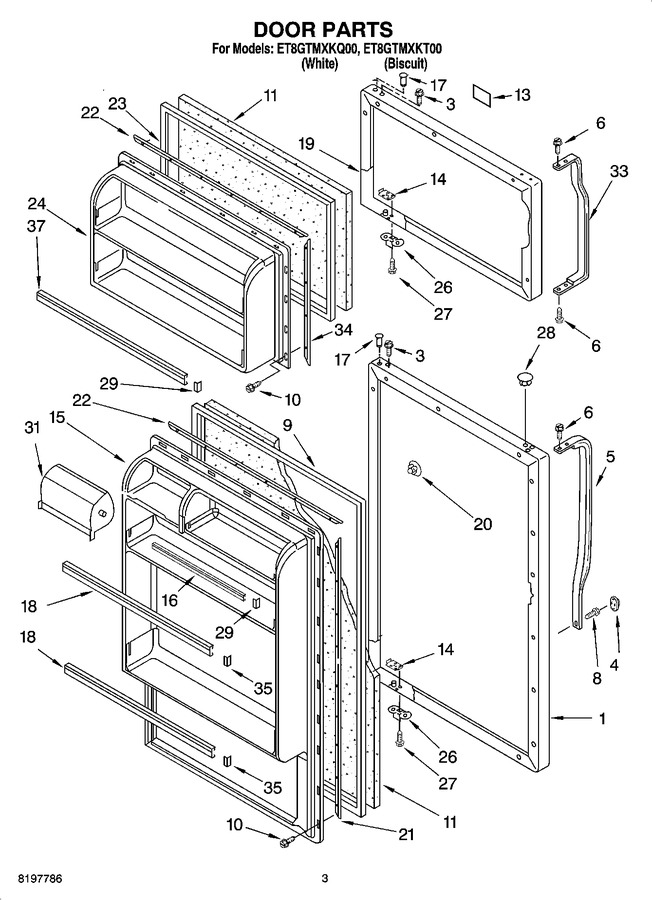

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2197087 | Refrigerator Door Panel (also Order Item 11) (white) |
|
- | |||||
| 1 | 2215359 | Refrigerator Door Panel (also Order Item 11) (biscuit) |
|
- | |||||
| 3 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 4 | 2202819T | Cover, Screw (biscuit) |
|
$ 8.02 | |||||
| 4 | WP2202819W | Cover, Screw (white) (Replaces: 2202819W) |
|
Immediately | $ 7.75 | ||||
| 5 | WP2221946W | Handle (white) (Replaces: 2221946W) |
|
Immediately | $ 130.11 | ||||
| 5 | WP2221946T | Handle (biscuit) (Replaces: 2221946T) |
|
$ 145.01 | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 7.56 | |||||
| 9 | WP2319264T | Door Gasket, Magnetic (Replaces: 2262080) |
|
Immediately | $ 192.71 | ||||
| 10 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 11 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 13 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 88.74 | ||||
| 14 | 2183000 | Plate, Tap |
|
$ 36.19 | |||||
| 15 | 2197158 | Interior Door Panel (refrigerator) |
|
- | |||||
| 16 | WP2163629 | Trim, Door Shelf (Replaces: 2163630) |
|
Immediately | $ 63.40 | ||||
| 17 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 18 | 2163628 | Trim, Door |
|
- | |||||
| 19 | 2197086 | Freezer Door Panel (also Order Item 11) (white) |
|
- | |||||
| 19 | 2197143T | Freezer Door Panel (also Order Item 11) (biscuit) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 20 | WP2200936 | Hole Plug (biscuit) (Replaces: 2200936) |
|
$ 7.59 | |||||
| 21 | 2197082 | Retainer, Gasket |
|
- | |||||
| 22 | 1120614 | Retainer, Gasket |
|
$ 27.51 | |||||
| 23 | 2188462A | Door Gasket, Magnetic (Replaces: 2262079) |
|
Immediately | $ 114.77 | ||||
| 24 | 2197159 | Interior Door Panel (freezer) |
|
- | |||||
| 26 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 28 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.61 | |||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.80 | ||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.65 | ||||
| 31 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 58.76 | ||||
| 33 | WP2202098 | Handle, F.c. (white) (Replaces: 2202098) |
|
$ 149.35 | |||||
| 33 | WP2215015 | Handle, F.c. (biscuit) (Replaces: 2215015) |
|
$ 145.93 | |||||
| 34 | 1122553 | Retainer, Gasket |
|
- | |||||
| 35 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 37 | WP2163629 | Trim-door (2) (Replaces: 2163629) |
|
Immediately | $ 63.40 |
