SELECT A DIAGRAM

01 - Cabinet Parts

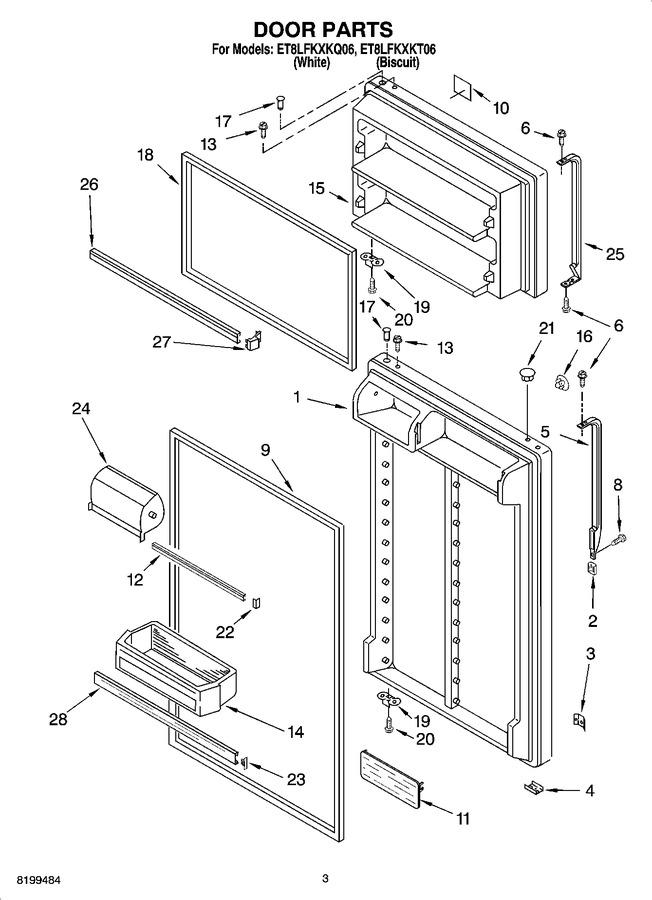

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205281		Refrigerator Door (includes Illus. 3,4, 9 & 17) (biscuit)		Appelez-nous	-
1	2183898		Refrigerator Door (includes Illus. 3,4, 9 & 17) (white)		Appelez-nous	-
2	2193353T		Cover, Trim (biscuit)		Appelez-nous	-
2	WP2193353W		Cover, Trim (white)   (Replaces: 2193353W)				$ 8.11
3	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
4	2183198		Tap Plate		Appelez-nous	-
5	4388947		Handle, Refrigerator (white)   (Replaces: 2213112W)				$ 194.73
5	2213112T		Handle, Refrigerator (biscuit)		Appelez-nous	-
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	2159057		Door Gasket, Magnetic   (Replaces: 2202874)			Immediately	$ 164.66
10	2205136		Nameplate (biscuit)		Appelez-nous	-
10	2200957		Nameplate (white)		Appelez-nous	-
11	WP2188234		Shelf, Flip-up   (Replaces: 2188234)			Immediately	$ 57.44
12	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 118.40
13	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
14	WP2204810		Door Bin (3)   (Replaces: 2204810)				$ 79.59
15	2205279		Freezer Door (includes Illus. 4,17 & 18) (biscuit)		Appelez-nous	-
15	2182487		Freezer Door (includes Illus. 4, 17 & 18) (white)		Appelez-nous	-
16	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 7.59
16	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.40
17	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
18	2159327		Door Gasket, Magnetic   (Replaces: 2214966)			Immediately	$ 164.58
19	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
21	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.80
21	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.61
22	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
23	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
24	WP2218113		Compartment Door   (Replaces: 2218113)			Immediately	$ 50.33
25	2213111T		Handle, Freezer (biscuit)		Appelez-nous	-
25	4388947		Handle, Freezer (white)   (Replaces: 2213111W)				$ 194.73
26	2195946		Trim-door (2)				$ 46.58
27	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 12.55
28	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 129.76

    View Diagram in Separate Window       Print Part List
