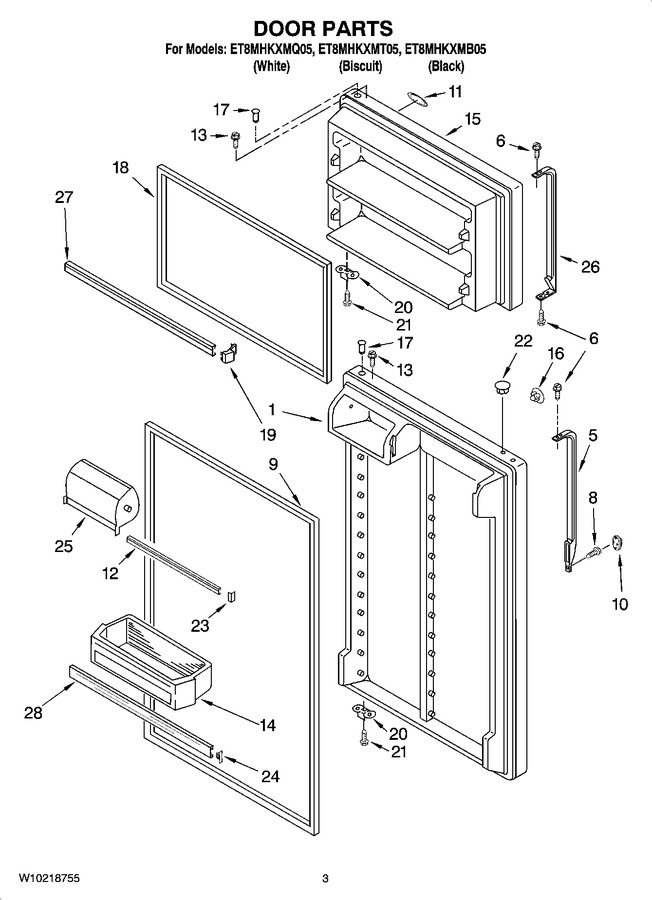

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2205281 | Refrigerator Door (includes Illus. 9, & 17) (biscuit) |
|
- | |||||
| 1 | 2183898 | Refrigerator Door (includes Illus. 9, & 17) (white) |
|
- | |||||
| 1 | 2200712 | Refrigerator Door (includes Illus. 9 & 17) (black) |
|
- | |||||
| 5 | 2202807B | Handle, Refrigerator (black) |
|
$ 66.99 | |||||
| 5 | WP2202807W | Handle, Refrigerator (white) (Replaces: 2202807W) |
|
$ 155.22 | |||||
| 5 | 2202807T | Handle, Refrigerator (biscuit) |
|
$ 64.39 | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 7.56 | |||||
| 9 | 2159057 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202874) |
|
Immediately | $ 164.66 | ||||
| 9 | 2177305 | Door Gasket, Magnetic (black) (Replaces: 2202881) |
|
$ 274.07 | |||||
| 10 | WP2202819B | Cover, Screw (black) (Replaces: 2202819B) |
|
$ 10.89 | |||||
| 10 | WP2202819W | Cover, Screw (white) (Replaces: 2202819W) |
|
Immediately | $ 7.75 | ||||
| 10 | 2202819T | Cover, Screw (biscuit) |
|
$ 8.02 | |||||
| 11 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 88.74 | ||||
| 12 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 118.40 | |||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.94 | |||||
| 14 | WP2204810 | Door Bin (3) (Replaces: 2204810) |
|
$ 79.59 | |||||
| 15 | 2200710 | Freezer Door (includes Illus. 17 & 18) (black) |
|
- | |||||
| 15 | 2182487 | Freezer Door (includes Illus. 17 & 18) (white) |
|
- | |||||
| 15 | 2205279 | Freezer Door (includes Illus. 17 & 18) (biscuit) |
|
- | |||||
| 16 | WP2200936 | Hole Plug, Handle (biscuit) (Replaces: 2200936) |
|
$ 7.59 | |||||
| 16 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2189009) |
|
$ 7.25 | |||||
| 16 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 17 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.19 | |||||
| 18 | 2159327 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214966) |
|
Immediately | $ 164.58 | ||||
| 18 | 2177304 | Door Gasket, Magnetic (black) (Replaces: 2214968) |
|
$ 225.08 | |||||
| 19 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 12.55 | ||||
| 20 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 21 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 22 | WP2212648 | Hole Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 7.80 | ||||
| 22 | WP2212651 | Hole Plug, Hinge (black) (Replaces: 2212651) |
|
$ 23.06 | |||||
| 22 | WP2212649 | Hole Plug, Hinge (biscuit) (Replaces: 2212649) |
|
$ 7.61 | |||||
| 23 | WP2156007 | Plug-trim (2) (Replaces: 2156007) |
|
Immediately | $ 7.65 | ||||
| 24 | WP2156006 | Plug-trim (2) (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 25 | WP2218113 | Compartment Door (Replaces: 2218113) |
|
Immediately | $ 50.33 | ||||
| 26 | WP2202806W | Handle, Freezer (white) (Replaces: 2202806W) |
|
$ 148.00 | |||||
| 26 | 2202806T | Handle, Freezer (biscuit) |
|
$ 63.61 | |||||
| 26 | WP2202806B | Handle, Freezer (black) (Replaces: 2202806B) |
|
$ 147.21 | |||||
| 27 | 2195946 | Trim-door (2) |
|
$ 46.58 | |||||
| 28 | WPW10421484 | Trim, Door (Replaces: 2195949) |
|
$ 129.76 |
