01 - Top And Console Parts
02 - Cabinet Parts

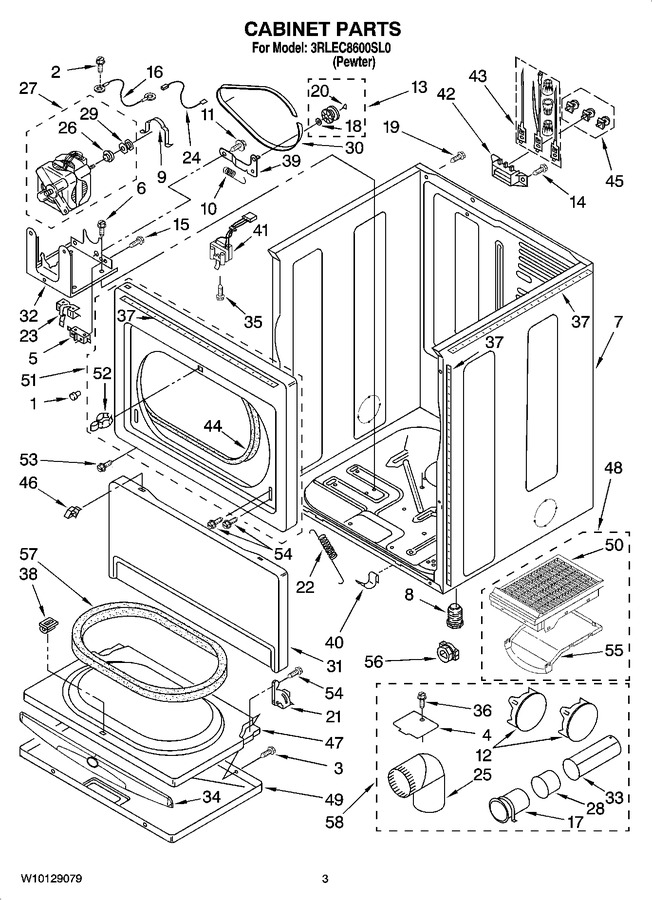

03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 693152 | Bumper |
|
$ 10.36 | |||||
| 2 | WPW10119283 | Screw, 8-32 X 5/16 (Replaces: W10119286) |
|
$ 121.29 | |||||
| 3 | W10080300 | Screw, 8-18 X 3/8 |
|
- | |||||
| 4 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.47 | |||||
| 5 | WP8318457 | Switch, Broken Belt (Replaces: 8318457) |
|
$ 39.77 | |||||
| 6 | W10080760 | Screw, 10-24 X 3/8 |
|
- | |||||
| 7 | 8528155 | Cabinet |
|
- | |||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 | ||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.40 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 23.22 | ||||
| 11 | W10080670 | Retainer, Idler |
|
- | |||||
| 12 | WPW10404617 | Plug, Multivent (Replaces: 3979261) |
|
$ 68.02 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 29.26 | ||||
| 14 | W10080710 | Screw, 10-16 X 1/2 |
|
- | |||||
| 15 | W10118188 | Screw, 6-20 X 1 1/16 |
|
- | |||||
| 16 | 340025 | Wire, Ground |
|
- | |||||
| 17 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 3395532) |
|
$ 86.36 | |||||
| 18 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 7.52 | ||||
| 19 | W10080830 | Screw, 10-32 X 5/8 |
|
- | |||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 9.14 | ||||
| 21 | WP3387560 | Hinge, Door (r.h.) (Replaces: 3387560) |
|
$ 98.28 | |||||
| 21 | WP3387559 | Hinge, Door (l.h.) (Replaces: 3387559) |
|
$ 98.28 | |||||
| 22 | WP3387565 | Spring, Door (2) (Replaces: 3387565) |
|
$ 37.19 | |||||
| 23 | W10854043 | Lever, Snap Switch (Replaces: W10083220) |
|
$ 27.41 | |||||
| 24 | 3394081 | Wire, Belt Switch |
|
$ 37.57 | |||||
| 25 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 25.34 | |||||
| 26 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 27 | W10416573 | Motor, Assembly 50 Hz. (Replaces: 3404470) |
|
$ 225.72 | |||||
| 28 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 74.61 | |||||
| 29 | 3402548 | Pulley 50 Hz. |
|
- | |||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 31 | 3979197 | Panel, Toe (includes, Item. 1) |
|
- | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 126.24 | |||||
| 33 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 83.92 | |||||
| 34 | 8563821 | Handle, Door |
|
- | |||||
| 35 | W10080540 | Screw, 6-20 X 7/8 |
|
- | |||||
| 36 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 37 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 35.74 | |||||
| 38 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 39 | W10837240 | Idler Bracket (Replaces: W10118754) |
|
Immediately | $ 32.20 | ||||
| 40 | WP297092 | Clip (2) (Replaces: 297092) |
|
Immediately | $ 8.06 | ||||
| 41 | WPW10237959 | Door Switch Assembly (Replaces: 3406109) |
|
Immediately | $ 59.19 | ||||
| 42 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 43 | 279318 | Terminal, Brass & Tinned (3) Includes Illus. 45 |
|
Immediately | $ 95.44 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 29.24 | ||||
| 45 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 50.09 | ||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.99 | ||||
| 47 | 697655 | Door, Rear |
|
- | |||||
| 48 | 8212450A | Dry Rack Assembly (Replaces: 3406911) |
|
Immediately | $ 79.37 | ||||
| 49 | 8521936 | Door, Front |
|
- | |||||
| 50 | 8212450A | Rack, Top Dry (Replaces: 3406910) |
|
Immediately | $ 79.37 | ||||
| 51 | 3979198 | Upper Front Panel |
|
- | |||||
| 52 | W10080240 | Strike, Door |
|
- | |||||
| 53 | W10891954 | Screw, 8-18 X 3/8 (Replaces: W10080800) |
|
- | |||||
| 54 | W10080590 | Screw, 10-16 X 1/2 |
|
- | |||||
| 55 | 8212450A | Rack, Dry (bottom) (Replaces: 3406908) |
|
Immediately | $ 79.37 | ||||
| 56 | W11704629 | Clip, Strain Relief (Replaces: 8316644) |
|
- | |||||
| 57 | W10823582 | Seal, Door (Replaces: 3390736) |
|
$ 105.77 | |||||
| 58 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (silver) (Replaces: 279969) |
|
Immediately | $ 80.59 |
