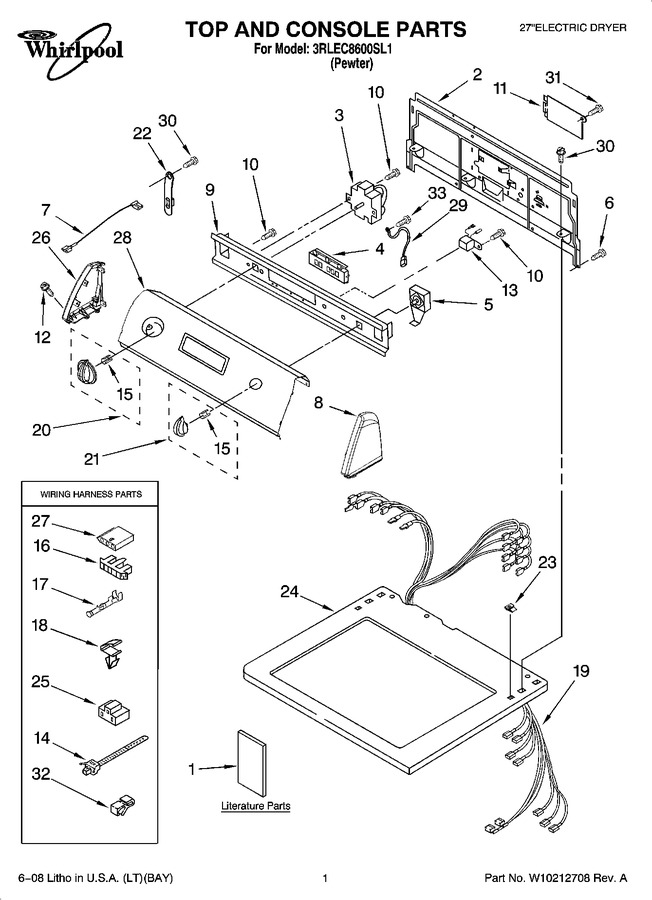

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10131548 | Guide, User & Installation (uk) |
|
- | |||||
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | W10167634 | Wiring Diagram |
|
- | |||||
| 1 | W10131582 | Guide, Use & Care |
|
- | |||||
| 1 | W10131579 | Instructions, Installation |
|
- | |||||
| 2 | W10121161 | Panel, Rear Console |
|
- | |||||
| 3 | WPW10116281 | Timer (Replaces: W10116281) |
|
$ 326.21 | |||||
| 4 | W10136992 | Switch, Clean Touch |
|
- | |||||
| 5 | WPW10112633 | Switch, Push-to-start (Replaces: W10112633) |
|
$ 135.29 | |||||
| 6 | WP693995 | Screw, 8-18 X 3/8 (Replaces: W10080390) |
|
Immediately | $ 7.55 | ||||
| 7 | 3401705 | Wire, Jumper (yellow/black) |
|
- | |||||
| 7 | 3393815 | Wire, Jumper (blue) |
|
- | |||||
| 7 | 3401703 | Wire, Jumper (violet) |
|
- | |||||
| 7 | 3401704 | Wire, Jumper (white) |
|
- | |||||
| 8 | 8541779 | Cap, End (r.h.) |
|
- | |||||
| 9 | W10118071 | Bracket, Control |
|
- | |||||
| 10 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 11 | W10601020 | Cover, Terminal Block (Replaces: W10096918) |
|
- | |||||
| 12 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 13 | 8522378 | Mini Buzzer (non-adjustable) |
|
- | |||||
| 14 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 15 | WP8536939 | Spring Clip Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 16 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 17 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 18 | 3394227 | Clip, Harness |
|
- | |||||
| 19 | W10167631 | Harness, Wiring |
|
- | |||||
| 20 | 8544957 | Timer Knob Assembly |
|
$ 41.86 | |||||
| 21 | 8544937 | Knob, Push-to-start |
|
$ 24.98 | |||||
| 22 | 8318225 | Strap, Console |
|
- | |||||
| 23 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 24 | 8546092 | Top |
|
- | |||||
| 25 | 3401144 | Connector, (pts Relay) |
|
$ 12.81 | |||||
| 26 | 8541780 | Cap, End (l.h.) |
|
- | |||||
| 27 | 3936144 | Connector |
|
$ 21.22 | |||||
| 28 | 8575087 | Control Panel |
|
- | |||||
| 29 | W10110977 | Wire, Ground |
|
- | |||||
| 30 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 31 | W10130935 | Screw, 8-32 X 5/16 |
|
- | |||||
| 32 | W10113937 | Clip, Grounding |
|
$ 11.37 | |||||
| 33 | W11808444 | Screw, 8-32 X 1/32 (Replaces: 98139) |
|
- |
