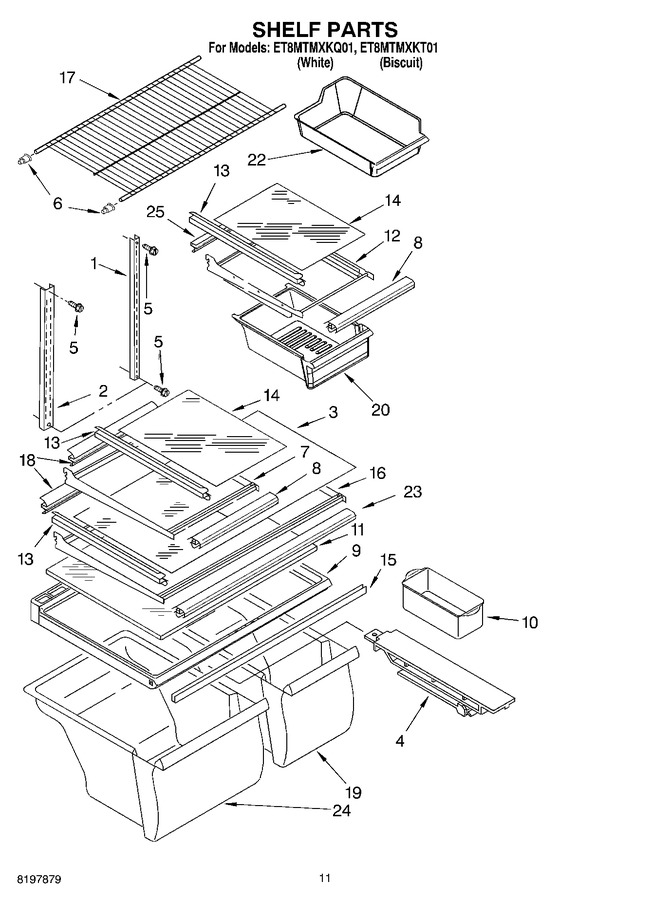

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	2177824		Glass, Full Shelf				$ 139.59
4	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 32.83
5	WP489478		Screw   (Replaces: 489478)				$ 7.36
6	WPW10130299		Cup, Shelf Mounting   (Replaces: 2163762)			Immediately	$ 13.23
7	2201101E		Shelf, Cantilever		Appelez-nous	-
8	2188525		Trim, Shelf Front		Appelez-nous	-
9	WP2314548		Cover, Crisper   (Replaces: 2195342)				$ 233.85
10	W10136387A		Egg Bin   (Replaces: 2216624)				$ 17.59
11	WP2169921		Insert, Crisper Cover   (Replaces: 2169921)				$ 233.04
12	2201111		Pan Shelf,				$ 168.49
13	2188517		Trim, Shelf Side				$ 54.51
14	2200985		Glass Shelf		Appelez-nous	-
15	WP2172748		Crisper Support   (Replaces: 2172541)				$ 91.87
16	2201103		Shelf, Full Cantilever				$ 88.86
17	2189453		Shelf, Freezer		Appelez-nous	-
18	WP2188689		Trim, Shelf Rear   (Replaces: 2188522)				$ 109.40
19	W10856580		Pan, Crisper   (Replaces: 2218123)			Immediately	$ 159.33
20	WP2218127K		Pan, Meat   (Replaces: 2218127K)				$ 132.12
22	2254352A		Ice Bucket   (Replaces: 2176219)				$ 52.78
23	2188527		Trim, Shelf Front		Appelez-nous	-
24	W10854037		Pan, Crisper   (Replaces: 2218124)			Immediately	$ 161.27
25	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 139.50
25	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
25	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
25	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
25	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
25	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
25	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
25	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
25	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
25	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
25	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
25	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
25	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 24.99
25	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
25	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
25	833938		Kit, Terminal Connector				$ 7.62
25	1117510		Torx Key				$ 5.84
25	WP2188689		Trim, Shelf Rear   (Replaces: 2188520)				$ 109.40
25	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
25	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
25	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
25	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
25	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
25	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
25	350942		Primer, White (12 Oz. Spray Can)				$ 84.73
