SELECT A DIAGRAM

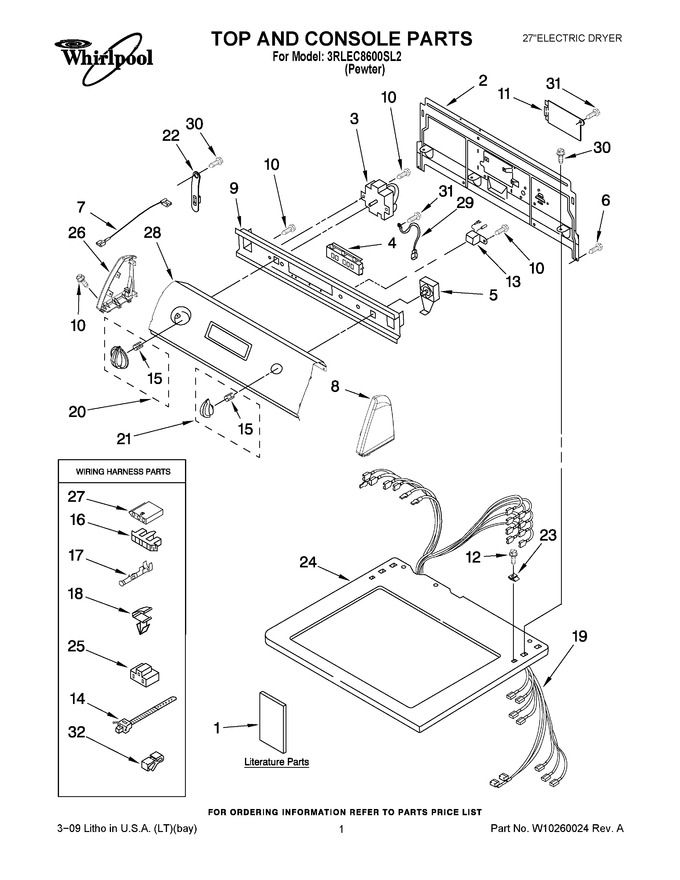

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10131579		Instructions, Installation		Appelez-nous	-
1	W10131548		Guide, User & Installation (uk)		Appelez-nous	-
1	W10241044		Wiring Diagram		Appelez-nous	-
1	W10131582		Guide, Use & Care		Appelez-nous	-
2	W10121161		Panel, Rear Console		Appelez-nous	-
3	WPW10116281		Timer   (Replaces: W10116281)				$ 310.68
4	W10136992		Switch, Clean Touch		Appelez-nous	-
5	WPW10112633		Switch, Push-to-start   (Replaces: W10112633)				$ 128.85
6	WP693995		Screw, 8-18 X 3/8   (Replaces: W10080390)			Immediately	$ 7.19
7	3401703		Wire, Jumper (violet)		Appelez-nous	-
7	3393815		Wire, Jumper (blue)		Appelez-nous	-
7	3401705		Wire, Jumper (yellow/black)		Appelez-nous	-
7	3401704		Wire, Jumper (white)		Appelez-nous	-
8	8541779		Cap, End (r.h.)		Appelez-nous	-
9	W10118071		Bracket, Control		Appelez-nous	-
10	W10080820		Screw, 8-18 X 5/16		Appelez-nous	-
11	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
12	W10080350		Screw, Console		Appelez-nous	-
13	8522378		Mini Buzzer (non-adjustable)		Appelez-nous	-
14	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
15	WP8536939		Spring Clip Knob   (Replaces: 8536939)			Immediately	$ 7.81
16	3397269		Connector, Timer				$ 25.55
17	WP94614		Terminal   (Replaces: 94614)				$ 7.67
18	3394227		Clip, Harness		Appelez-nous	-
19	W10242812		Harness, Wiring		Appelez-nous	-
20	8544957		Timer Knob Assembly				$ 41.86
21	8544937		Knob, Push-to-start				$ 24.98
22	8318225		Strap, Console		Appelez-nous	-
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
24	W10218192		Top		Appelez-nous	-
25	3401144		Connector, (pts Relay)				$ 12.20
26	8541780		Cap, End (l.h.)		Appelez-nous	-
27	3936144		Connector				$ 20.21
28	8575087		Control Panel		Appelez-nous	-
29	W10110977		Wire, Ground		Appelez-nous	-
30	W10891954		Screw, 8-18 X 1/2   (Replaces: W10080800)		Appelez-nous	-
31	W10130935		Screw, 8-32 X 5/16		Appelez-nous	-
32	W10113937		Clip, Grounding				$ 10.83
