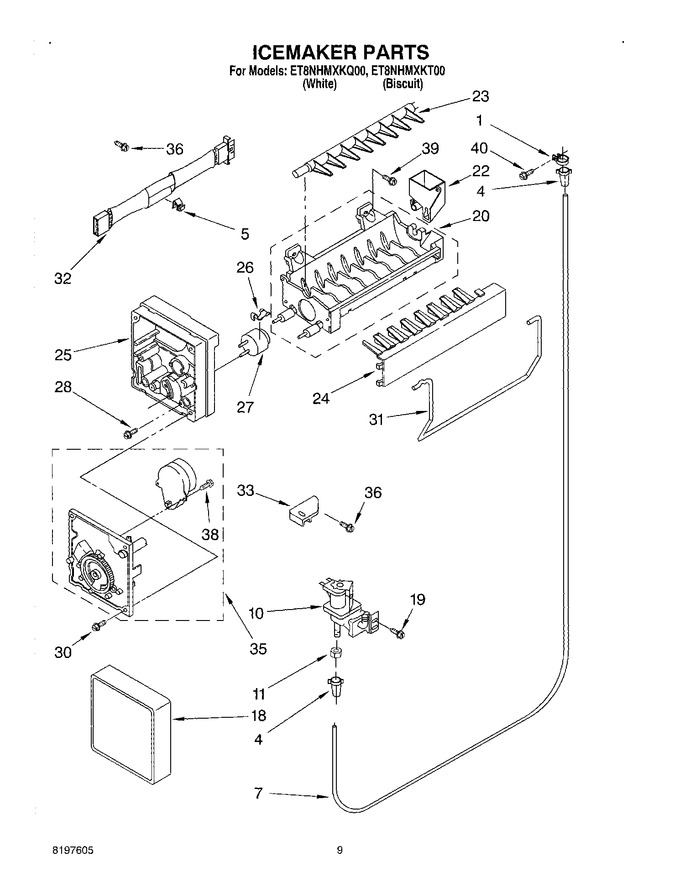

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
4	4387491		Insert, Tube   (Replaces: 2181939)				$ 7.84
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
7	W10823511		Tube Water   (Replaces: 2181943)			Immediately	$ 32.41
10	WP2315576		Valve Solenoid   (Replaces: 2182104)			Immediately	$ 95.98
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.97
18	WPW10289690		Cover   (Replaces: 2210484)			Immediately	$ 8.40
19	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
20	WPW10190929		Mold & Heater Assembly (also Order)   (Replaces: 628315)				$ 233.15
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.18
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 51.19
23	WP627843		Ejector   (Replaces: 2194711)				$ 83.60
24	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 86.05
25	WP2195914		Support   (Replaces: 2194712)				$ 104.57
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.05
27	WP627985		Thermostat (also Order)   (Replaces: 628397)				$ 109.18
27	542369		Cement Alumilastic)		Appelez-nous	-
28	8533917		Screw   (Replaces: 489322)				$ 13.37
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	WP627792		Shut Off Arm   (Replaces: 627792)				$ 84.53
32	WP2187464		Harness, Wiring   (Replaces: 628256)				$ 124.57
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 32.17
35	W10190935		Module Assembly (includes Item 38)   (Replaces: 628399)			Immediately	$ 110.07
36	WP489478		Screw   (Replaces: 489478)				$ 7.75
38	489136		Screw (3-24 X 23/64)				$ 10.29
39	WP488163		Screw   (Replaces: 488208)				$ 7.54
40	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.58
100	4317943		Complete Icemaker Assembly			Immediately	$ 188.95
