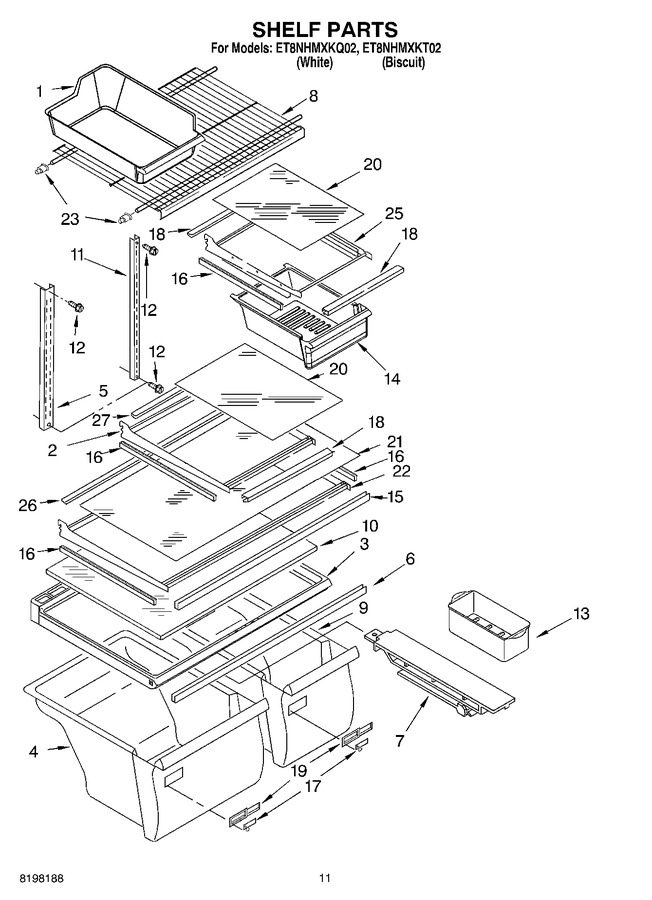

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254352A		Ice Bucket   (Replaces: 2176219)				$ 58.64
2	2201107K		Shelf, Cantilever				$ 169.02
3	WP2314548		Cover, Crisper   (Replaces: 2200768)				$ 259.83
4	W10854037		Crisper Pan (includes 17 & 19)   (Replaces: 2218141)			Immediately	$ 179.19
5	2202821		Shelf, Ladder		Appelez-nous	-
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 102.08
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 36.48
8	WP2176275		Shelf   (Replaces: 2176275)				$ 123.40
9	W10856580		Crisper Pan (includes 17 & 19)   (Replaces: 2218140)			Immediately	$ 177.03
10	WP2169921		Glass, Crisper Cover   (Replaces: 2169921)				$ 258.93
11	2210522		Shelf, Ladder (2)				$ 44.10
12	WP489478		Screw   (Replaces: 489478)				$ 8.18
13	W10136387A		Egg Bin   (Replaces: 2216624)				$ 19.54
14	WP2218127K		Meat Pan   (Replaces: 2218127K)				$ 146.80
15	2188527		Trim, Shelf Front		Appelez-nous	-
16	2188517		Trim, Shelf Side				$ 54.51
17	WP2176222		Slide, Crisper   (Replaces: 2176222)				$ 27.35
18	2188525		Trim, Shelf Front		Appelez-nous	-
19	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.81
20	2200985		Glass, Half Shelf		Appelez-nous	-
21	2200986		Glass, Full Shelf				$ 120.53
22	2201109		Shelf, Cantilever				$ 121.04
23	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
25	2201111		Pan Shelf, Cantilever				$ 168.49
26	WP2188689		Trim, Shelf Rear   (Replaces: 2188522)				$ 121.55
27	833938		Kit, Terminal Connector				$ 8.47
27	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
27	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
27	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
27	350956		Enamel, Almond (12 Oz. Spray Can)				$ 54.01
27	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
27	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
27	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
27	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
27	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
27	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
27	350942		Primer, White (12 Oz. Spray Can)				$ 94.14
27	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
27	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 27.77
27	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
27	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
27	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
27	1117510		Torx Key				$ 5.84
27	WP2188689		Trim, Shelf Rear Hw   (Replaces: 2188520)				$ 121.55
27	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
27	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
27	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
27	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
27	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
27	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
27	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
27	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
