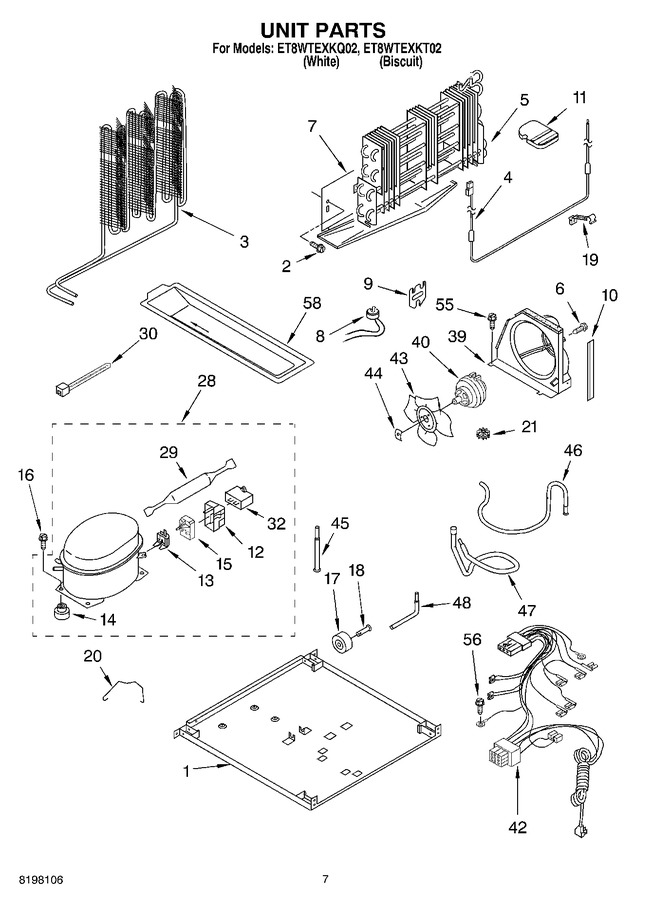

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet, Literature
02 - Door
03 - Liner
04 - Unit
05 - Shelf, Optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2205341 | Plate, Unit Mounting |
|
- | |||||
| 2 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 3 | 2212599 | Condenser |
|
- | |||||
| 4 | WP2315531 | Heater, Defrost (Replaces: 2176300) |
|
$ 104.62 | |||||
| 5 | 2195391 | Evaporator Assy. |
|
- | |||||
| 6 | WP8281196 | Screw (Replaces: 489494) |
|
Immediately | $ 7.19 | ||||
| 7 | 2172619 | Drain Pan |
|
- | |||||
| 8 | WP4387503 | Defrost Bi-metal (Replaces: 2221677) |
|
Immediately | $ 47.89 | ||||
| 9 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 10 | 2163780 | Extension, Air Baffle |
|
- | |||||
| 11 | 2201184 | Support Block |
|
$ 6.43 | |||||
| 12 | WP2162358 | Cover Service Only) (Replaces: 4387731) |
|
$ 90.75 | |||||
| 13 | 4387913 | Overload ((service - Includes Relay)) (Replaces: 4387766) |
|
Immediately | $ 84.39 | ||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.42 | |||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.95 | |||||
| 15 | WP2225929 | Start-device Combination (start Relay And Overload For Production Compressor Only) (Replaces: 2218853) |
|
Immediately | $ 128.01 | ||||
| 16 | 876811 | Screw (Replaces: 489373) |
|
$ 7.42 | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 18.21 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 20 | 2212996 | Strap |
|
$ 12.11 | |||||
| 21 | 531933 | Grommet |
|
$ 5.70 | |||||
| 28 | W10309988 | Compressor (includes Items 12, 13, 15, 29, & 32) (Replaces: 2218994) |
|
Immediately | $ 559.32 | ||||
| 29 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 52.57 | ||||
| 29 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 52.57 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 7.90 | |||||
| 32 | WPW10662129 | Capacitor (production) (Replaces: 2169373) |
|
Immediately | $ 58.86 | ||||
| 32 | WP4387764 | Capacitor (service) (Replaces: 4387764) |
|
$ 177.04 | |||||
| 39 | 2198921 | Air Baffle |
|
- | |||||
| 40 | W10822259 | Motor, Condenser (Replaces: 2188537) |
|
Immediately | $ 221.30 | ||||
| 42 | 2187384 | Wire Assembly Unit |
|
- | |||||
| 43 | 2190685 | Fan, Blade |
|
$ 52.00 | |||||
| 44 | WP486692 | Nut (Replaces: 486692) |
|
$ 7.82 | |||||
| 45 | 2212603 | Tube, Transition |
|
- | |||||
| 46 | 2205384 | Tube, Discharge |
|
$ 36.26 | |||||
| 47 | 2219622 | Tube, Suction |
|
- | |||||
| 48 | 2154109 | Tube, Process |
|
$ 72.63 | |||||
| 55 | 3400518 | Screw |
|
$ 12.98 | |||||
| 56 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 58 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| 58 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 58 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 58 | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| 58 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| 58 | 2210451 | Evaporator Tray |
|
$ 66.37 | |||||
| 58 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| 58 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 |
