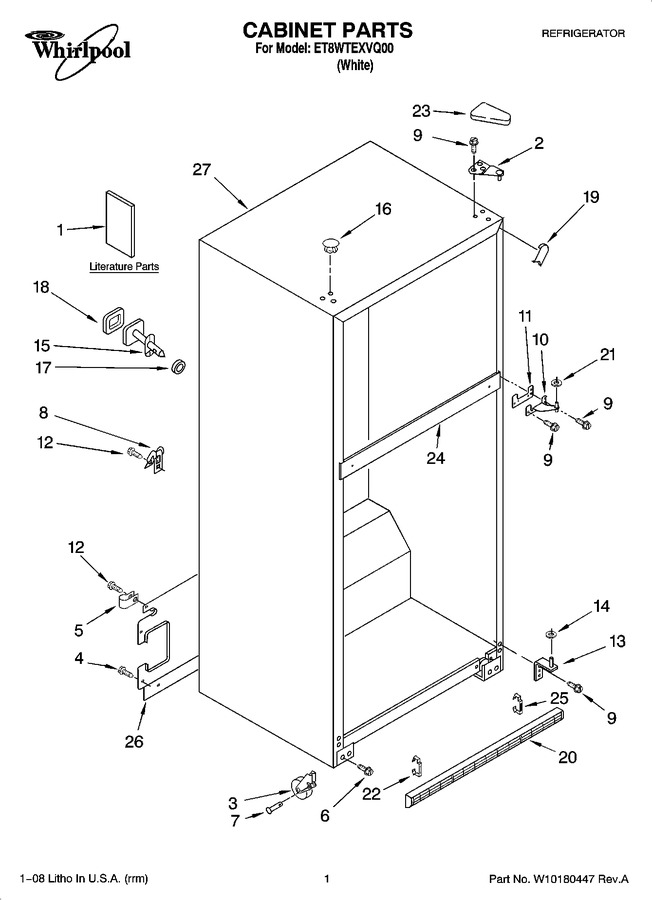

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual Ref./frz.				$ 30.30
1	W10178118		Energy Guide		Appelez-nous	-
1	W10131409		Use & Care Guide (bilingual)		Appelez-nous	-
1	W10131417		Use & Care Guide (trilingual)		Appelez-nous	-
1	W10142143		Service & Wiring Sheet		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 99.45
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
4	WP489427		Screw   (Replaces: 489427)				$ 7.84
5	WP488366		Tube Clamp   (Replaces: 489385)				$ 11.92
6	WP3400504		Screw   (Replaces: 3400504)				$ 7.55
7	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 19.12
8	549193		Clamp-cord				$ 14.06
9	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
10	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
11	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 11.18
12	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 8.38
13	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 9.28
14	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
16	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 22.87
19	WPW10283959		Corner Filler (2)   (Replaces: 2201014)				$ 8.21
20	WP2254386		Grille (includes Illus. 22 & 25)   (Replaces: 2254386)				$ 99.26
21	WP489467		Washer   (Replaces: 489341)			Immediately	$ 11.42
22	2189356		Clip-grille				$ 5.70
23	WP2213360		Cover Hinge   (Replaces: 2213360)				$ 20.19
25	2254385		Clip-grille				$ 88.87
26	2254578		Cover, Unit				$ 46.75
