01 - Exterior Parts

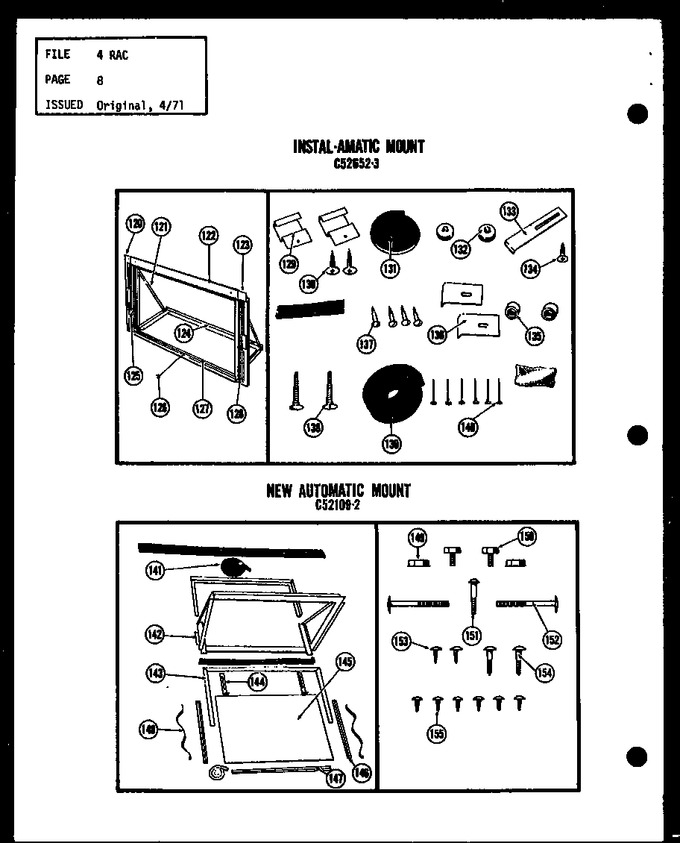

02 - Instal-amatic Mount


03 - Interior Parts


04 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
120	B0512802		Weldment, Sliding Frame, L.h.		Appelez-nous	-
121	B5107701		Support		Appelez-nous	-
122	C5265001		Rail		Appelez-nous	-
123	B5128801		Weldment Kit		Appelez-nous	-
124	C5238901		Frame		Appelez-nous	-
125	D5393201		Curtain Mtg.		Appelez-nous	-
126	B5113101		Cable Assembly		Appelez-nous	-
127	B5126801		Frame		Appelez-nous	-
128	B5126901		Bracket Strip, Curtain		Appelez-nous	-
129	B5127401		Clip		Appelez-nous	-
130	M0211532		Screw		Appelez-nous	-
131	A4660601		Gasket, Sash Seal Strip		Appelez-nous	-
132	M0234539		Thumb Screw		Appelez-nous	-
133	B4791301		Sill Clamp		Appelez-nous	-
134	M0228241		Screw		Appelez-nous	-
135	A4065501		Spacer K		Appelez-nous	-
136	A4622201		Clamp		Appelez-nous	-
137	M0236004		Screw		Appelez-nous	-
138	M0212062		Screw		Appelez-nous	-
139	A3030302		Gasket		Appelez-nous	-
140	M0010508		X$x Nail		Appelez-nous	-
141	A4660601		Gasket, Sash Seal Strip		Appelez-nous	-
142	D5316602		Weldment Frame		Appelez-nous	-
143	D5317301		Gasket		Appelez-nous	-
144	B4791301		Sill Clamp		Appelez-nous	-
145	C5210501		Window Board		Appelez-nous	-
146	B4791501		Retainer, Window Board		Appelez-nous	-
147	B4791502		Retainer, Window Board		Appelez-nous	-
148	B4792101		Spring, Window Board		Appelez-nous	-
149	WP487939		Nut   (Replaces: M0282015)				$ 8.62
150	M0206557		Screw		Appelez-nous	-
151	M0236047		Screw		Appelez-nous	-
152	M0200101		Screw		Appelez-nous	-
153	M0211530		Screw		Appelez-nous	-
154	M0236545		Screw, Wood		Appelez-nous	-
155	M0211517		Screw		Appelez-nous	-
