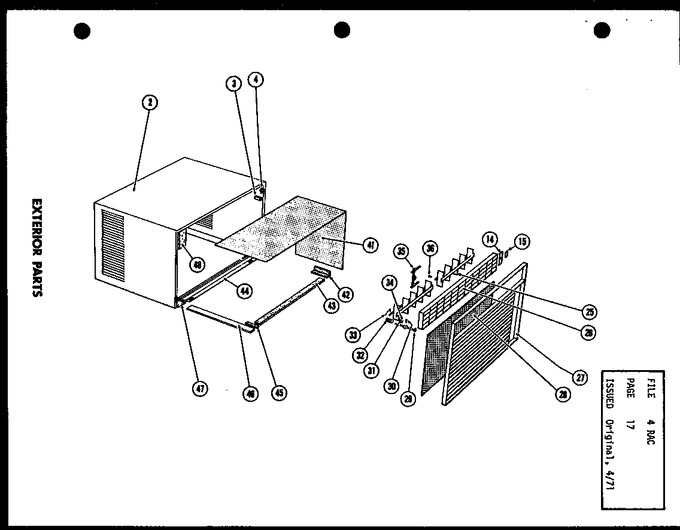

01 - Exterior Parts


02 - Installation Kit Parts


03 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	D5378302		Weldment, Outer Case		Appelez-nous	-
3	A4607401		Guide		Appelez-nous	-
4	M0100306		Clip		Appelez-nous	-
14	A4664503		Friction Clip		Appelez-nous	-
15	M0115701		Clip		Appelez-nous	-
25	C5286601		Louvers		Appelez-nous	-
26	D5396407		Horizontal Louver Box		Appelez-nous	-
27	D5421505		Front, Cabinet		Appelez-nous	-
28	A4657801		Air Filter		Appelez-nous	-
29	B5139703		Lever, Vertical Louvers, Cabin		Appelez-nous	-
30	M0590201		Clinch		Appelez-nous	-
32	A4624102		Spring,lever		Appelez-nous	-
33	A4623801		Linkage Bar		Appelez-nous	-
34	M0229004		Screw		Appelez-nous	-
35	B5175010		Center Support		Appelez-nous	-
36	M0229004		Screw		Appelez-nous	-
41	C5245001		Insulation		Appelez-nous	-
42	B5107607		Gasket		Appelez-nous	-
43	A3030325		Gasket, Closure Plate Flange,		Appelez-nous	-
45	A3030325		Gasket, Closure Plate Flange,		Appelez-nous	-
46	B5169802		Glide		Appelez-nous	-
47	A4591111		Gasket, Polyethylene, Outer Ca		Appelez-nous	-
48	A3030319		Gasket-per Ft		Appelez-nous	-
NI	A4624001		Spring		Appelez-nous	-
NI	B5167101		Pin		Appelez-nous	-
NI	A4542802		Filter, Retainer		Appelez-nous	-
NI	M0211519		Screw		Appelez-nous	-
NI	A4680401		Strike		Appelez-nous	-
NI	M0229004		Screw		Appelez-nous	-
NI	A4577804		Hook		Appelez-nous	-
