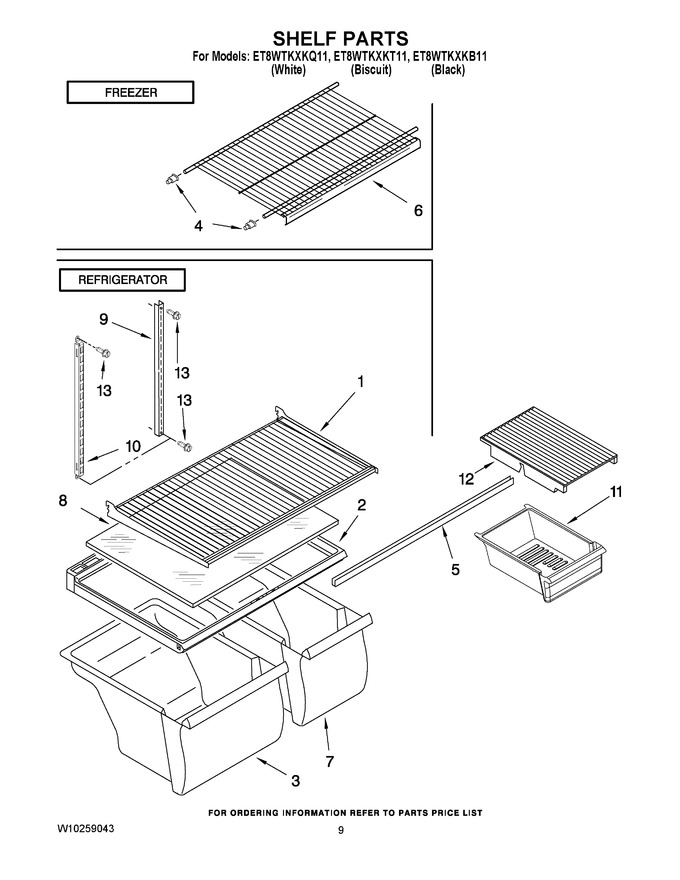

05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10240587 | Shelf (2) |
|
- | |||||
| 2 | WP2314548 | Cover, Crisper (Replaces: 2314497) |
|
$ 247.46 | |||||
| 3 | W10854037 | Pan-crisper 13`` (Replaces: 2218124) |
|
Immediately | $ 170.66 | ||||
| 4 | WPW10130299 | Cup, Shelf Mounting (Replaces: 2163762) |
|
Immediately | $ 14.00 | ||||
| 5 | WP2172748 | Support, Crisper Cover (Replaces: 2314477) |
|
$ 97.22 | |||||
| 6 | 2189453 | Shelf |
|
- | |||||
| 7 | W10856580 | Pan-crisper 10`` (Replaces: 2218123) |
|
Immediately | $ 168.60 | ||||
| 8 | WP2169921 | Insert, Crisper Cover (Replaces: 2221693) |
|
$ 246.60 | |||||
| 9 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 10 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 11 | WP2218127K | Meat Pan (Replaces: 2218127K) |
|
$ 139.81 | |||||
| 12 | 2163848 | Cover, Meat Pan |
|
$ 71.41 | |||||
| 13 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 |
