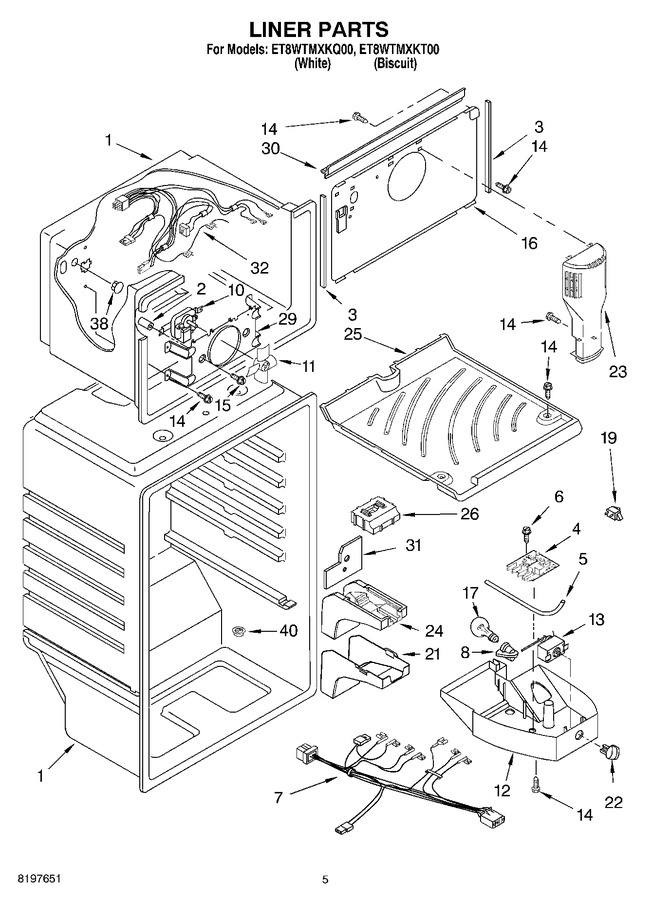

SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Icemaker


06 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	531933		Grommet (2)				$ 5.70
3	WP2254360		Gasket, Evaporator Cover (side)   (Replaces: 2189268)				$ 26.78
4	WP2304099		Adaptive, Defrost Control   (Replaces: 2213100)			Immediately	$ 296.24
5	WP2196003		Thermostat Tube, Barrier   (Replaces: 2204640)				$ 7.95
6	WP98129		Screw   (Replaces: 98129)				$ 7.56
7	2187350		Wire Assy. Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 110.16
10	2183833		Fan Motor		Appelez-nous	-
11	WP2163777		Blade, Fan   (Replaces: 2163777)			Immediately	$ 66.15
12	2212980		Control Box		Appelez-nous	-
13	WP2204605		Thermostat (includes Item 5)   (Replaces: 2204605)			Immediately	$ 99.88
14	WP489478		Screw   (Replaces: 489478)				$ 7.75
15	489412		Screw		Appelez-nous	-
16	2201170		Cover-evaporator		Appelez-nous	-
17	W10887190		Light Bulb   (Replaces: 2160708)			Immediately	$ 18.31
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 37.23
21	2176281		Cover, Air Diffuser				$ 41.64
22	WP2202885		Knob, Thermostat   (Replaces: 2202885)				$ 26.38
23	2182340		Air Tower				$ 43.02
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2189452)			Immediately	$ 124.79
25	2172565		Freezer Floor		Appelez-nous	-
26	2179877		Air Diffuser, Top		Appelez-nous	-
29	2200641		Bracket, Fan Motor		Appelez-nous	-
30	WP2254360		Gasket, Evaporator Cover (top)   (Replaces: 2189267)				$ 26.78
31	2204639		Shield, Heat		Appelez-nous	-
32	2187301		Wire Assembly, Freezer Compartment		Appelez-nous	-
38	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
40	WP2210509		Release Valve   (Replaces: 2171931)				$ 94.43
