SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Ice Maker


06 - Shelf, Optional

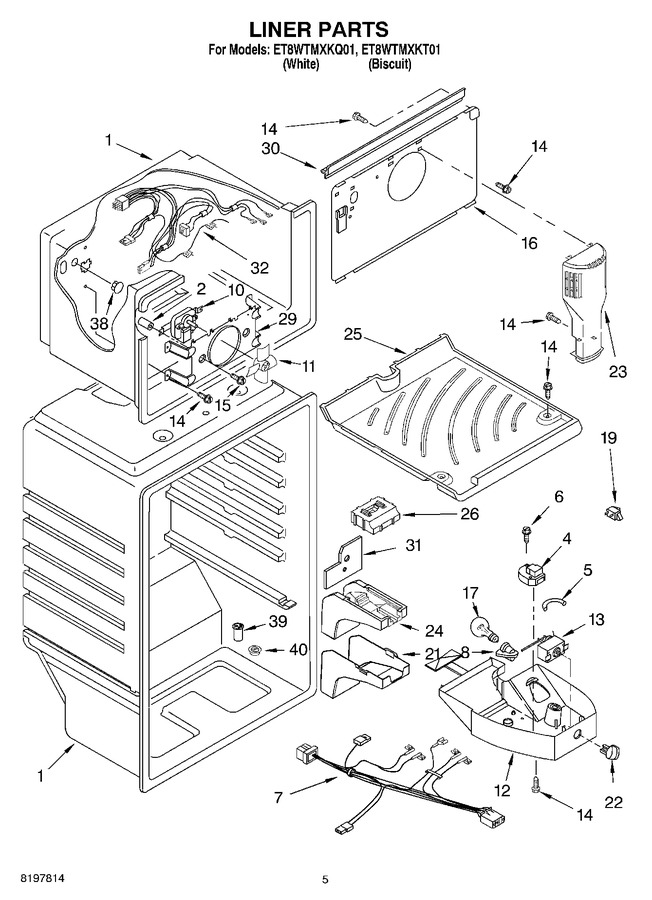

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	531933		Grommet (2)				$ 5.70
4	W10822278		Defrost Timer   (Replaces: 2188376)			Immediately	$ 34.44
5	WP2196003		Thermostat Tube, Barrier   (Replaces: 2204640)				$ 8.35
6	WP98129		Screw   (Replaces: 98129)				$ 8.18
7	2221668		Wire Assy. Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 115.67
10	2183833		Fan Motor		Appelez-nous	-
11	WP2163777		Fan Blade   (Replaces: 2163777)			Immediately	$ 66.15
12	2218381		Control Box		Appelez-nous	-
13	WP2204605		Thermostat   (Replaces: 2221666)			Immediately	$ 99.88
14	WP489478		Screw   (Replaces: 489478)				$ 8.18
15	489412		Screw		Appelez-nous	-
16	2201170		Cover-evaporator		Appelez-nous	-
17	W10887190		Light Bulb   (Replaces: 2160708)			Immediately	$ 19.23
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 39.09
21	2176281		Cover, Air Diffuser				$ 41.64
22	WP2202885		Knob, Thermostat   (Replaces: 2202885)				$ 27.70
23	2182340		Air Tower				$ 43.02
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2189452)			Immediately	$ 131.03
25	2172565		Freezer Floor		Appelez-nous	-
26	2179877		Air Diffuser, Top		Appelez-nous	-
29	2200641		Bracket, Fan Motor		Appelez-nous	-
30	WP2254360		Gasket, Evaporator Cover (top)   (Replaces: 2189270)				$ 28.12
31	2204639		Shield, Heat		Appelez-nous	-
32	2187301		Wire Assembly, Freezer Compartment		Appelez-nous	-
38	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
39	WP2210509		Valve, Tube-body   (Replaces: 2210509)				$ 99.15
40	WP2210509		Release Valve   (Replaces: 2171931)				$ 99.15
