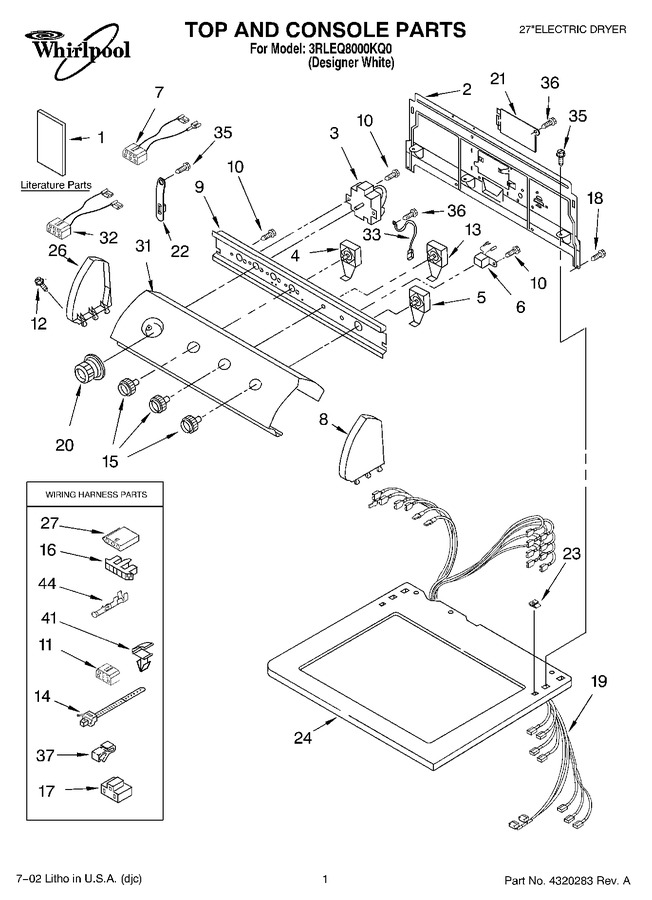

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8318343 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT8315975 | Literature Parts (guide, User & Installation (uk)) |
|
- | |||||
| 1 | LIT8528094 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8299807 | Literature Parts (label, Wiring Diagram) |
|
- | |||||
| 2 | 285909 | Panel, Rear Console (Replaces: 8317305) |
|
$ 248.97 | |||||
| 3 | WPW10116281 | Timer (Replaces: 8299769) |
|
$ 310.68 | |||||
| 4 | W10168169 | Switch, Temperature (Replaces: 3399642) |
|
$ 89.11 | |||||
| 5 | WPW10112633 | Switch, Push-to-start (Replaces: 8318447) |
|
$ 128.85 | |||||
| 6 | 8522378 | Mini Buzzer (non-adjustable) |
|
- | |||||
| 7 | 3397695 | Wire, Jumper (guard On/off) |
|
$ 86.40 | |||||
| 8 | 8271363 | Cap, End (r.h.) |
|
- | |||||
| 9 | 8271316 | Bracket, Control |
|
- | |||||
| 10 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.50 | |||||
| 11 | 3347243 | Connector 6-circuit |
|
- | |||||
| 12 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.11 | |||||
| 13 | W10168170 | Switch, Wrinkle Guard (Replaces: 8316076) |
|
$ 196.84 | |||||
| 14 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 31.84 | |||||
| 15 | WP3957799 | Knob, Control (3) (Replaces: 8271339) |
|
$ 52.44 | |||||
| 16 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 17 | 3401144 | Connector, (pts Relay) |
|
$ 12.20 | |||||
| 18 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 19 | 8283163 | Harness, Wiring |
|
- | |||||
| 20 | WP3957754 | Timer Knob Assembly (Replaces: 8312687) |
|
$ 59.87 | |||||
| 21 | WPW10119283 | Cover, Terminal Block (Replaces: 8317342) |
|
$ 128.35 | |||||
| 22 | WP8568314 | Strap, Console (Replaces: 8318255) |
|
$ 7.78 | |||||
| 23 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 24 | 8271399 | Top |
|
- | |||||
| 26 | 8271369 | Cap, End (l.h.) |
|
- | |||||
| 27 | 3936144 | Connector |
|
$ 20.21 | |||||
| 31 | 8318385 | Panel, Control |
|
- | |||||
| 32 | 8283287 | Wire, Jumper (temperature) |
|
- | |||||
| 33 | 3398893 | Wire, Ground |
|
- | |||||
| 35 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 36 | W11808444 | Screw, 8-32 X 5/16 (Replaces: 98139) |
|
- | |||||
| 37 | W10113937 | Clip, Grounding (Replaces: 357572) |
|
$ 10.83 | |||||
| 41 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 44 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| LIT677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- |
