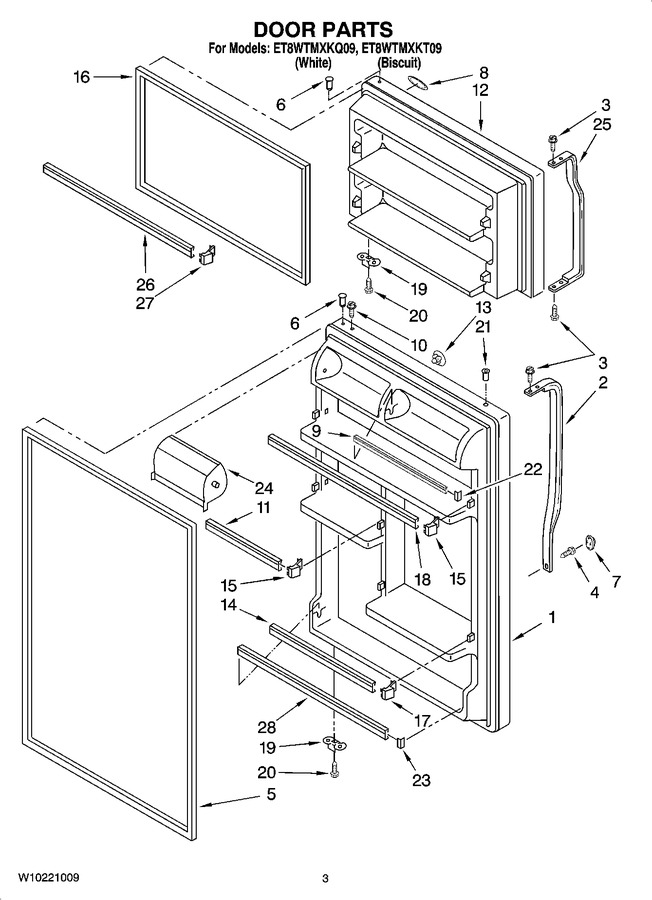

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183948 | Refrigerator Door (includes Illus. 5 & 6) (white) |
|
- | |||||
| 1 | 2205285 | Refrigerator Door (includes Illus. 5 & 6) (biscuit) |
|
- | |||||
| 2 | WP2202807W | Handle, Refrigerator (white) (Replaces: 2202807W) |
|
$ 162.98 | |||||
| 2 | 2202807T | Handle, Refrigerator (biscuit) |
|
$ 64.39 | |||||
| 3 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 4 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 8.18 | |||||
| 5 | 2159057 | Door Gasket, R.c. Magnetic (mist Beige) (Replaces: 2202874) |
|
Immediately | $ 164.66 | ||||
| 6 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 7 | WP2202819W | Cover, Screw (white) (Replaces: 2202819W) |
|
Immediately | $ 8.14 | ||||
| 7 | 2202819T | Cover, Screw (biscuit) |
|
$ 8.02 | |||||
| 8 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 93.18 | ||||
| 9 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 124.32 | |||||
| 10 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 11 | 2201052 | Trim, Door |
|
$ 28.91 | |||||
| 12 | 2205279 | Freezer Door (includes Illus. 6 & 16) (biscuit) |
|
- | |||||
| 12 | 2182487 | Freezer Door (includes Illus. 6 & 16) (white) |
|
- | |||||
| 13 | WP2189000 | Hole Plug, Handle (1) (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 13 | WP2200936 | Hole Plug, Handle (1) (biscuit) (Replaces: 2200936) |
|
$ 7.97 | |||||
| 14 | WP2195943 | Trim, Door Shelf (Replaces: 2195943) |
|
$ 91.78 | |||||
| 15 | WP2195915 | Plug-trim (Replaces: 2195915) |
|
$ 13.72 | |||||
| 16 | 2159327 | Door Gasket, F.c. Magnetic (mist Beige) (Replaces: 2214966) |
|
Immediately | $ 164.58 | ||||
| 17 | WP2195915 | Endcap (2) (Replaces: 2195915) |
|
$ 13.72 | |||||
| 18 | WP2201051 | Trim, Door Shelf (Replaces: 2201051) |
|
$ 115.07 | |||||
| 19 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 20 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 21 | WP2212649 | Hole Plug, Hinge (2) (biscuit) (Replaces: 2212649) |
|
$ 7.99 | |||||
| 21 | WP2212648 | Hole Plug, Hinge (2) (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 22 | WP2156007 | Plug-trim (4) (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 23 | WP2156006 | Plug-trim (4) (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 24 | WP2218113 | Compartment Door (Replaces: 2218113) |
|
Immediately | $ 50.33 | ||||
| 25 | WP2202806W | Handle, Freezer (white) (Replaces: 2202806W) |
|
$ 155.40 | |||||
| 25 | 2202806T | Handle, Freezer (biscuit) |
|
$ 63.61 | |||||
| 26 | 2201050 | Trim-door (2) |
|
$ 43.26 | |||||
| 27 | WP2156003 | Endcap (4) (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 28 | WPW10421484 | Trim, Door (Replaces: 2195949) |
|
$ 136.25 |
