SELECT A DIAGRAM

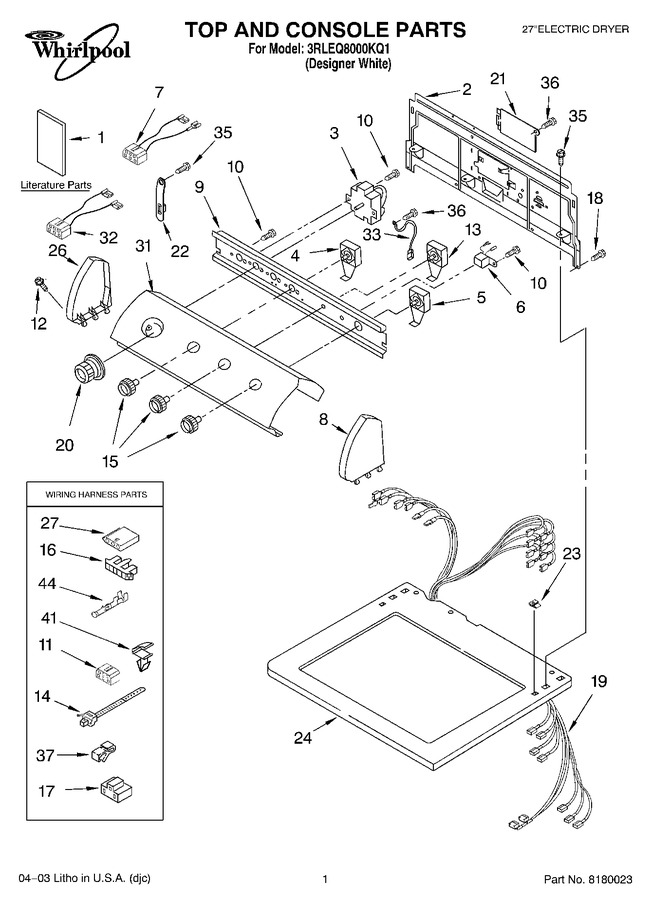

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8315975		Literature Parts (guide, User & Installation (uk))		Appelez-nous	-
1	LIT677818		Literature Parts (manual, Do-it- Yourself Repair (dryer))		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT8528094		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8318343		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8299807		Literature Parts (wiring Diagram)		Appelez-nous	-
2	285909		Panel, Rear Console   (Replaces: 8317305)				$ 248.97
3	WPW10116281		Timer   (Replaces: 8299769)				$ 310.68
4	W10168169		Switch, Temperature   (Replaces: 3399642)				$ 89.11
5	WPW10112633		Switch, Push-to-start   (Replaces: 8318447)				$ 128.85
6	8522378		Mini Buzzer (non-adjustable)		Appelez-nous	-
7	3397695		Wire, Jumper (guard On/off)				$ 86.40
8	8271363		Cap, End (r.h.)		Appelez-nous	-
9	8271316		Bracket, Control		Appelez-nous	-
10	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
11	3347243		Connector 6-circuit		Appelez-nous	-
12	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
13	W10168170		Switch, Wrinkle Guard   (Replaces: 8316076)				$ 196.84
14	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
15	WP3957799		Knob, Control (3)   (Replaces: 8271339)				$ 52.44
16	3397269		Connector, Timer				$ 25.55
17	3401144		Connector, (pts Relay)				$ 12.20
18	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
19	8529875		Harness, Wiring		Appelez-nous	-
20	WP3957754		Timer Knob Assembly   (Replaces: 8312687)				$ 59.87
21	WPW10119283		Cover, Terminal Block   (Replaces: 8317342)				$ 128.35
22	WP8568314		Strap, Console   (Replaces: 8318255)				$ 7.78
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
24	8271399		Top		Appelez-nous	-
26	8271369		Cap, End (l.h.)		Appelez-nous	-
27	3936144		Connector				$ 20.21
31	8318385		Panel, Control		Appelez-nous	-
32	8283287		Wire, Jumper (temperature)		Appelez-nous	-
33	3398893		Wire, Ground		Appelez-nous	-
35	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
36	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
37	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
41	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
44	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
