SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts

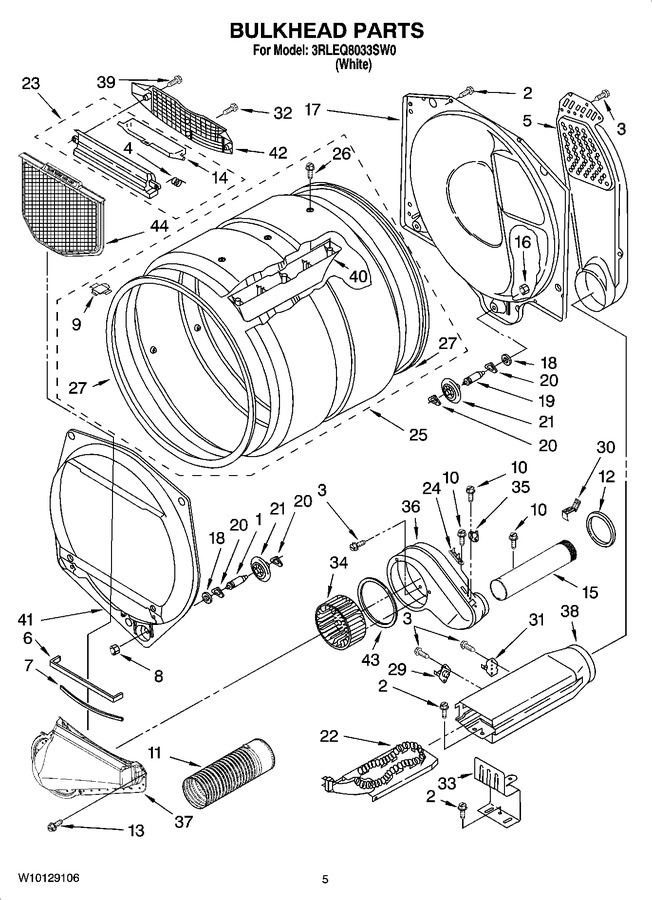

03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | W10130935 | Screw, 8-18 X 1/2 |
|
- | |||||
| 3 | W10080280 | Screw, 8-18 X 3/8 |
|
- | |||||
| 4 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.59 | |||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 311.72 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.97 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.97 | ||||
| 8 | W11812294 | Nut,3/8 X 16 (r.h.) (Replaces: W10080210) |
|
$ 12.16 | |||||
| 9 | 8066086 | Drum, Hole Plug |
|
$ 10.75 | |||||
| 10 | W10080820 | Screw, 8-18 X 5/16 |
|
- | |||||
| 11 | 8318409 | Exhaust Duct (corrugated) |
|
- | |||||
| 12 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 22.29 | |||||
| 13 | W10080380 | Screw, 8-18 X 1/16 |
|
- | |||||
| 14 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 203.72 | ||||
| 15 | W10121166 | Exhaust Pipe |
|
- | |||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10080190) |
|
Immediately | $ 8.49 | ||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 350.11 | |||||
| 18 | W11236646 | Washer, Support (Replaces: W10080960) |
|
Immediately | $ 14.03 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | WP3387749 | Heater Element (Replaces: 3387749) |
|
Immediately | $ 312.93 | ||||
| 23 | W11129408 | Outlet Housing Assembly (Replaces: 3394985) |
|
Immediately | $ 53.28 | ||||
| 24 | WP3392519 | Thermal Fuse (91`c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 25 | W10545923 | Complete Drum Assembly (Replaces: 8528998) |
|
$ 436.76 | |||||
| 26 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: W10109200) |
|
Immediately | $ 8.00 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 70.82 | ||||
| 29 | WP3390291 | Thermostat, High Limit 250~f (121.1~c) (60 Hz.) (Replaces: 3390291) |
|
Immediately | $ 94.94 | ||||
| 30 | W11684573 | Clip-exhaust (Replaces: 8572105) |
|
$ 7.78 | |||||
| 31 | 279769 | Thermal Cut-off (includes Illus. 29) (Replaces: 3977394) |
|
Immediately | $ 62.85 | ||||
| 32 | W10080360 | Screw, 8-15 X 1/2 |
|
- | |||||
| 33 | 8066099 | Bracket, Heater |
|
$ 24.35 | |||||
| 34 | WPW10349492 | Wheel, Blower (Replaces: W10168564) |
|
Immediately | $ 120.33 | ||||
| 35 | WP3387137 | Thermostat, Internal Bias (Replaces: 3387137) |
|
$ 136.38 | |||||
| 36 | W10888146 | Housing, Blower (Replaces: W10119255) |
|
$ 101.70 | |||||
| 37 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 207.12 | |||||
| 38 | W10802681 | Heater Box (Replaces: 3392537) |
|
Immediately | $ 129.67 | ||||
| 39 | W10080640 | Screw, 10-16 X 1/2 |
|
- | |||||
| 40 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 91.02 | ||||
| 41 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 208.03 | |||||
| 42 | W11086603 | Grill, Outlet (Replaces: 8299979) |
|
Immediately | $ 35.14 | ||||
| 43 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.88 | ||||
| 44 | W10120998 | Lint Screen (Replaces: W10049370) |
|
$ 67.16 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 4396175 | Paint, Pressurized Spray (12 Oz.) (pewter) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| WP4396174 | Paint, Touch-up (1/2oz.) (pewter) (Replaces: 4396174) |
|
$ 28.20 | ||||||
| 8212450A | Dry Rack (Replaces: 3406911) |
|
Immediately | $ 83.99 | |||||
| W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 11.75 | ||||||
| 4392067 | Kit, Dryer Repair |
|
Immediately | $ 62.25 |
