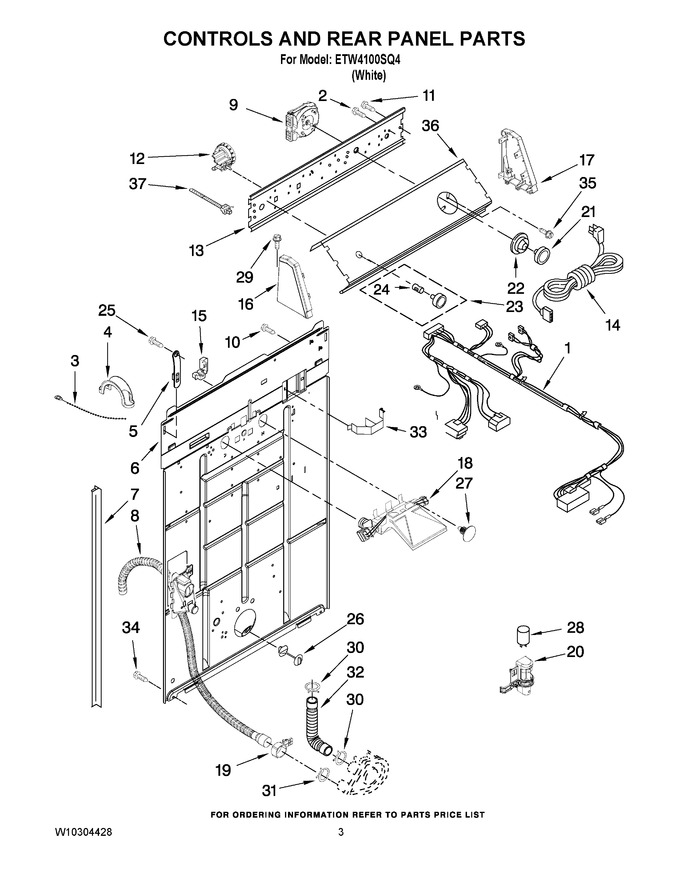

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10220034 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
$ 267.78 | |||||
| 2 | 3400073 | Screw, Ground |
|
- | |||||
| 3 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 8.30 | |||||
| 4 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 8.37 | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 8.17 | |||||
| 6 | WPW10194450 | Panel, Rear (Replaces: W10194450) |
|
$ 353.45 | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | WPW10189267 | Drain Hose Assembly (includes Item 19) (Replaces: W10189267) |
|
Immediately | $ 70.58 | ||||
| 9 | WPW10201447 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: W10201447) |
|
$ 338.36 | |||||
| 10 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 12 | WPW10231403 | Switch, Water Level (Replaces: W10231403) |
|
$ 172.61 | |||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 122.00 | |||||
| 14 | 3956162 | Cord, Power (includes Item 15) |
|
- | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 279960 | Cap, End (l.h.) (Replaces: 8274437) |
|
$ 87.57 | |||||
| 17 | 279960 | Cap, End (r.h.) (Replaces: 8274434) |
|
$ 87.57 | |||||
| 18 | WPW10140918 | Valve, Water Inlet W/vacuum Break (Replaces: W10140918) |
|
$ 230.18 | |||||
| 19 | 8541668 | Clamp, Hose |
|
$ 22.32 | |||||
| 20 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 21 | WP8538949 | Knob, Timer (Replaces: 8538949) |
|
$ 61.97 | |||||
| 22 | WP8538955 | Dial, Timer (Replaces: 8538955) |
|
$ 55.68 | |||||
| 23 | WP8538957 | Knob, Control (Replaces: 8538957) |
|
$ 58.53 | |||||
| 24 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 25 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 26 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 19.85 | ||||
| 27 | W10000080 | Clip, Push-in Retainer |
|
- | |||||
| 28 | WP8572717 | Capacitor, Motor Start (Replaces: 8572717) |
|
Immediately | $ 80.14 | ||||
| 29 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 9.29 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 33 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 34 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 35 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 8.81 | |||||
| 36 | W10200866 | Panel, Console |
|
- | |||||
| 37 | W10231379 | Cable Tie |
|
- |
