SELECT A DIAGRAM

01 - Top And Console Parts

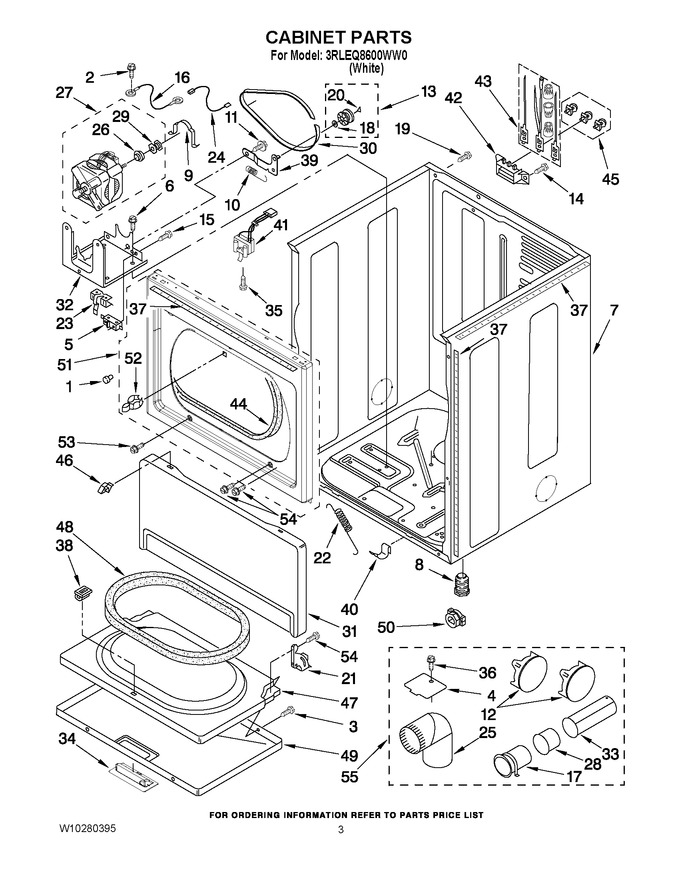

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	693152		Bumper				$ 11.51
2	WPW10119283		Screw, 8-32 X 5/16   (Replaces: W10119286)				$ 134.77
3	W10080300		Screw, 8-18 X 3/8		Appelez-nous	-
4	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 9.41
5	WP8318457		Switch, Broken Belt   (Replaces: 8318457)				$ 44.19
6	W10080760		Screw, 10-24 X 3/8		Appelez-nous	-
7	W11417441		Cabinet   (Replaces: 8310656)				$ 440.17
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor (2)   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	W10080670		Retainer, Idler		Appelez-nous	-
12	WPW10404617		Plug, Multivent   (Replaces: 3979261)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	W10080710		Screw, 10-16 X 1/2		Appelez-nous	-
15	W10118188		Screw, 6-20 X 1 1/16		Appelez-nous	-
16	340025		Wire, Ground		Appelez-nous	-
17	WP8563747		Exhaust Pipe & Bracket   (Replaces: 3395532)				$ 95.95
18	WPW10121334		Washer, Thrust   (Replaces: W10121334)			Immediately	$ 7.55
19	W10080830		Screw, 10-32 X 5/8		Appelez-nous	-
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	WP3387560		Hinge, Door (r.h.)   (Replaces: 3387560)				$ 109.20
21	WP3387559		Hinge, Door (l.h.)   (Replaces: 3387559)				$ 109.20
22	WP3387565		Spring, Door (2)   (Replaces: 3387565)				$ 41.32
23	W10854043		Lever, Snap Switch   (Replaces: W10083220)				$ 30.45
24	3394081		Wire, Belt Switch				$ 37.57
25	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
27	W10416573		Motor, Assembly 50 Hz.   (Replaces: 3404470)				$ 250.80
28	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
29	3402548		Pulley 50 Hz.		Appelez-nous	-
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	WP3406797		Toe Panel (includes Illus. 1)   (Replaces: 697215)				$ 250.25
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
34	WP348721		Handle, Door   (Replaces: 690270)				$ 81.78
35	W10080540		Screw, 6-20 X 7/8		Appelez-nous	-
36	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
37	8578827		Seal, Foam		Appelez-nous	-
38	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.89
39	W10837240		Idler Bracket   (Replaces: W10118754)			Immediately	$ 35.78
40	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.95
41	WPW10237959		Door Switch Assembly   (Replaces: W10237959)			Immediately	$ 55.64
42	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
43	279318		Terminal, Brass & Tinned (3) Includes Illus. 45			Immediately	$ 106.04
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 55.66
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	WP8066045		Door, Rear   (Replaces: 8066045)				$ 204.20
48	W10823582		Seal, Door   (Replaces: 3390736)				$ 117.52
49	697221		Door, Front		Appelez-nous	-
50	W11704629		Clip, Strain Relief   (Replaces: 8316644)		Appelez-nous	-
51	697227		Upper Front Panel		Appelez-nous	-
52	W10080240		Strike, Door		Appelez-nous	-
53	W10891954		Screw, 8-18 X 3/8   (Replaces: 8281212)		Appelez-nous	-
54	W10080590		Screw, 10-16 X 1/2		Appelez-nous	-
55	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) White   (Replaces: 279818)			Immediately	$ 76.65
NI	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
