SELECT A DIAGRAM

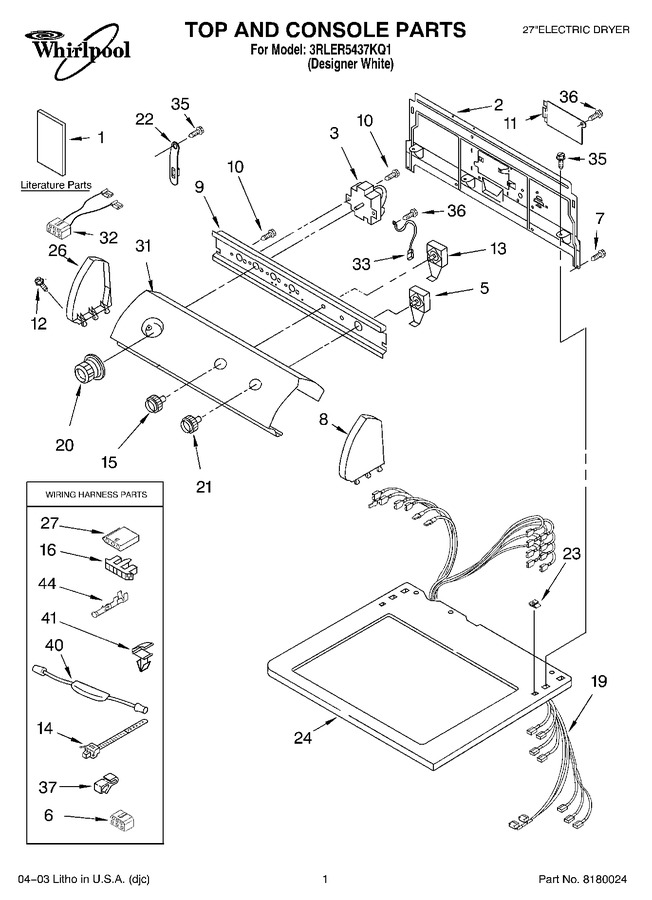

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8318343		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT677818		Literature Parts (manual, Do-it- Yourself Repair (dryer))		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT8528094		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8315975		Literature Parts (guide, User & Installation (uk))		Appelez-nous	-
1	LIT8299808		Literature Parts (wiring Diagram)		Appelez-nous	-
2	285909		Panel, Rear Console   (Replaces: 8317305)				$ 261.42
3	8299770		Timer				$ 151.92
5	WP3395382		Switch, Push-to-start   (Replaces: 3395382)			Immediately	$ 43.80
6	3347243		Connector 6-circuit		Appelez-nous	-
7	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
8	8271363		Cap, End (r.h.)		Appelez-nous	-
9	8271316		Bracket, Control		Appelez-nous	-
10	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
11	WPW10119283		Cover, Terminal Block   (Replaces: 8317342)				$ 134.77
12	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
13	3399638		Switch, Temperature				$ 136.24
14	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
15	WP3957799		Knob, Control   (Replaces: 8271339)				$ 55.06
16	3397269		Connector, Timer				$ 25.55
19	8529874		Harness, Wiring		Appelez-nous	-
20	WP3957754		Timer Knob Assembly   (Replaces: 8312687)				$ 62.86
21	3957804		Knob, Push To Start   (Replaces: 8271341)				$ 52.89
22	WP8568314		Strap, Console   (Replaces: 8318255)				$ 8.17
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
24	8271399		Top		Appelez-nous	-
26	8271369		Cap, End (l.h.)		Appelez-nous	-
27	3936144		Connector				$ 21.22
31	8318382		Panel, Control		Appelez-nous	-
32	8283286		Wire, Jumper Assembly   (Replaces: 8283293)		Appelez-nous	-
33	3398893		Wire, Ground		Appelez-nous	-
35	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
36	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
37	W10113937		Clip, Grounding   (Replaces: 357572)				$ 11.37
40	279872		Resistor, Assembly   (Replaces: 8283170)				$ 78.69
41	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
44	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05

    View Diagram in Separate Window       Print Part List
