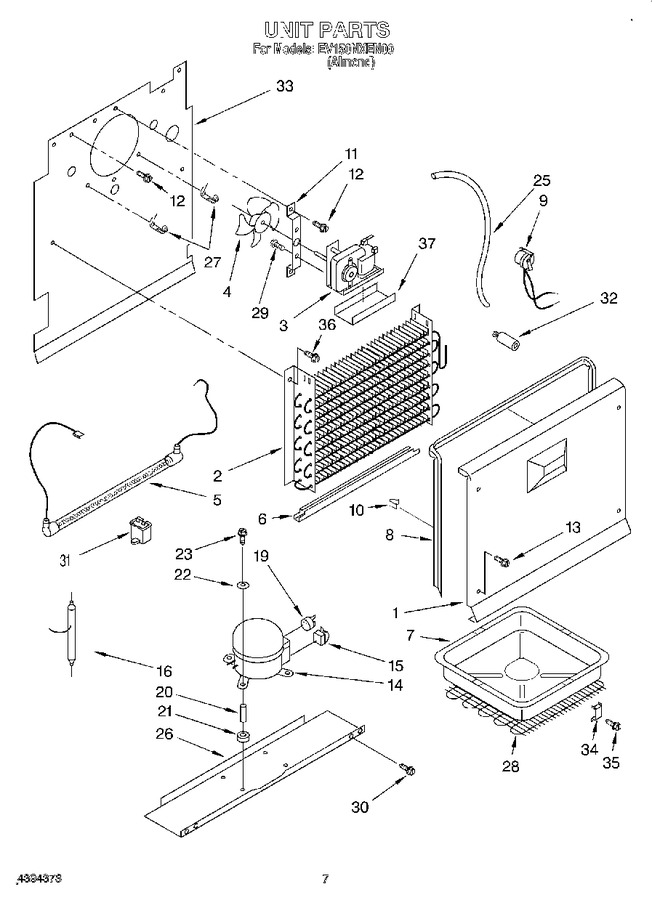

SELECT A DIAGRAM

01 - Cabinet, Lit/optional


02 - Liner


03 - Door


04 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357117		Cover, Evaporator		Appelez-nous	-
2	WP4-81546		Evaporator   (Replaces: 4357027)				$ 449.41
3	4357004		Fan Motor		Appelez-nous	-
4	WPW10445742		Fan Blade   (Replaces: 4356920)			Immediately	$ 10.55
5	W11175809		Heater Defrost   (Replaces: 4356923)			Immediately	$ 184.11
6	4356924		Shield Heater		Appelez-nous	-
7	4356925		Drain Pan		Appelez-nous	-
8	4356927		Gasket, Cover Evaporator		Appelez-nous	-
9	4356928		Bi-metal Defrost		Appelez-nous	-
10	4356941		Clip		Appelez-nous	-
11	2-80028-101		Bracket, Motor   (Replaces: 4357129)				$ 98.68
12	60001022		Screw, Motor   (Replaces: 4356943)				$ 66.41
13	WP3-24004-109		Screw (4)   (Replaces: 4357110)				$ 9.14
14	W10309990		Compressor (includes Items 15, 16 & 19)   (Replaces: 4357162)			Immediately	$ 632.81
15	WPW10189190		Relay   (Replaces: 4357156)			Immediately	$ 131.29
16	4007A		Drier   (Replaces: 4356332)			Immediately	$ 15.05
19	4357157		Overload		Appelez-nous	-
20	4356846		Sleeve				$ 15.00
21	4356335		Compressor Grommet		Appelez-nous	-
22	4356847		Washer		Appelez-nous	-
23	4357054		Screw, Compressor		Appelez-nous	-
25	WP4357245		Heat, Exchanger   (Replaces: 4357175)			Immediately	$ 284.25
26	4357109		Compressor Pan		Appelez-nous	-
27	4356952		Thermostat, Clip		Appelez-nous	-
28	4357158		Condenser		Appelez-nous	-
29	WP3400094		Screw   (Replaces: 4356970)				$ 9.26
30	WP3-24838-048		Screw   (Replaces: 4356820)				$ 8.33
31	4357154		Capacitor		Appelez-nous	-
32	4357020		Grommet		Appelez-nous	-
33	4357123		Plate, Evaporator Mount		Appelez-nous	-
34	4357125		Bracket		Appelez-nous	-
35	WP489478		Screw   (Replaces: 4356810)				$ 8.18
36	4357127		Screw		Appelez-nous	-
37	4357128		Shield, Motor				$ 114.21

    View Diagram in Separate Window       Print Part List
