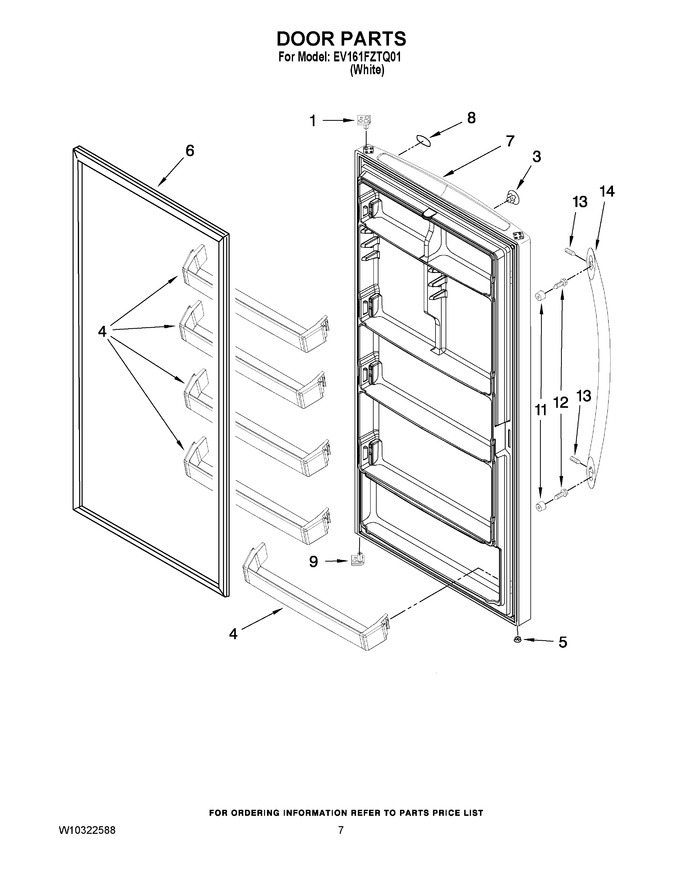

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210400 | Stop, Door (top) (natural) |
|
- | |||||
| 3 | WP2189000 | Plug-handle (Replaces: 4390596) |
|
Immediately | $ 7.77 | ||||
| 4 | W10737497 | Rail, Door (5) (Replaces: 8210385) |
|
$ 96.74 | |||||
| 5 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 11.34 | |||||
| 6 | WP4-65151-001 | Gasket, Door (Replaces: 8210340) |
|
$ 354.52 | |||||
| 7 | 4-82827-073 | Door Assembly (includes Interior Liner) |
|
- | |||||
| 8 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 9 | 8210400 | Stop, Door (bottom) (natural) |
|
- | |||||
| 11 | WPW10288153 | Stud, Handle (Replaces: 2-83030-001) |
|
Immediately | $ 9.65 | ||||
| 12 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 13 | 8533976 | Screw, Set |
|
$ 8.35 | |||||
| 14 | WPW10127761K | Handle (Replaces: 3-83029-002) |
|
$ 196.00 |
