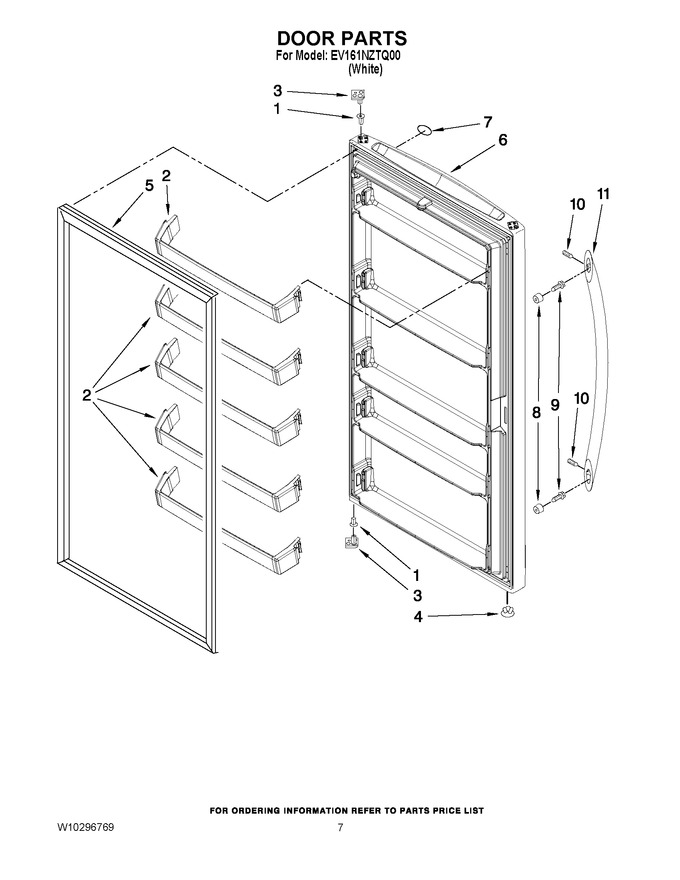

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390731 | Bushing, Hinge |
|
$ 19.69 | |||||
| 2 | W10737497 | Rail, Door (5) (Replaces: 8210385) |
|
$ 96.74 | |||||
| 3 | 8210400 | Stop, Door |
|
- | |||||
| 4 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 11.34 | |||||
| 5 | WP4-65151-001 | Gasket, Door (Replaces: 8210340) |
|
$ 354.52 | |||||
| 6 | 8210357 | Door Assembly (includes Interior Door Panel) |
|
- | |||||
| 7 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 8 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 9 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 10 | W11366418 | Screw (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 11 | WP2254600W | Handle (includes Item 10) (Replaces: 2254600W) |
|
$ 246.90 |
