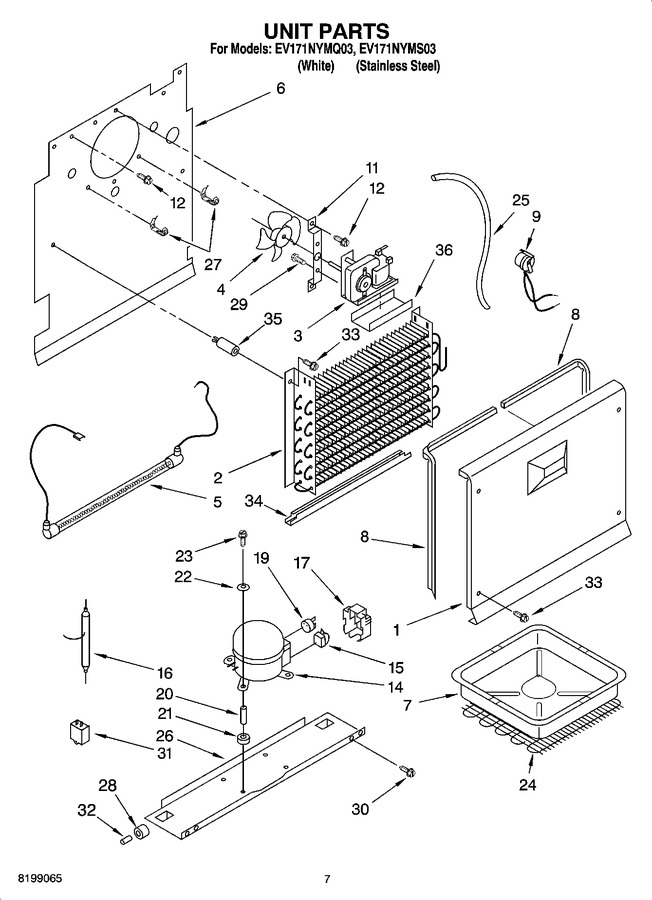

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390662		Cover, Evaporator				$ 147.35
2	WP4-81546		Evaporator   (Replaces: 4357244)				$ 428.01
3	WP3-60336-001		Motor, Fan   (Replaces: 4390914)			Immediately	$ 323.60
4	WPW10445742		Fan Blade   (Replaces: 4390912)			Immediately	$ 10.05
5	W11175809		Heater Defrost   (Replaces: 4356923)			Immediately	$ 175.34
6	4357123		Plate, Evaporator Mount		Appelez-nous	-
7	4390932		Drain Pan		Appelez-nous	-
8	4390664		Gasket, Evaporator Cover (left)				$ 93.57
8	4390663		Gasket, Evaporator Cover (right)				$ 250.95
9	4356928		Bi-metal Defrost		Appelez-nous	-
11	2-80028-101		Bracket, Motor   (Replaces: 4357256)				$ 98.68
12	60001022		Screw, Motor   (Replaces: 4356943)				$ 66.41
14	W10309994		Compressor (includes Items 15,17,19, & 21)   (Replaces: 4356775)			Immediately	$ 612.90
15	4356738		Relay				$ 53.17
16	4001		Drier   (Replaces: 4357299)			Immediately	$ 10.71
17	4390603		Cover		Appelez-nous	-
19	2-34286-021		Overload   (Replaces: 4356776)				$ 144.33
20	4356846		Sleeve				$ 15.00
21	4356335		Compressor Grommet		Appelez-nous	-
22	4356847		Washer		Appelez-nous	-
23	4356852		Screw, Compressor				$ 6.57
24	4390660		Condenser		Appelez-nous	-
25	4357263		Exchanger, Heat				$ 123.66
26	4390764		Compressor Pan (black And Stainless Steel Models)		Appelez-nous	-
26	4357257		Compressor Pan (white)		Appelez-nous	-
27	4356952		Thermostat, Clip		Appelez-nous	-
28	3-60315-001		Roller   (Replaces: 4390754)				$ 32.89
29	WP3400094		Screw   (Replaces: 4356970)				$ 7.93
30	WP3-24838-048		Screw   (Replaces: 4357277)				$ 7.78
31	3-35956-013		Capacitor   (Replaces: 4390674)				$ 121.12
32	4390755		Axle				$ 13.86
33	WP3-24004-109		Screw   (Replaces: 4357110)				$ 8.05
34	4357254		Shield, Heater		Appelez-nous	-
35	4357020		Grommet		Appelez-nous	-
36	4357128		Shield, Motor   (Replaces: 4357255)				$ 114.21
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 173.95
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
	N/A		Field Installable Ice Maker		Appelez-nous	-
	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 150.98
