SELECT A DIAGRAM

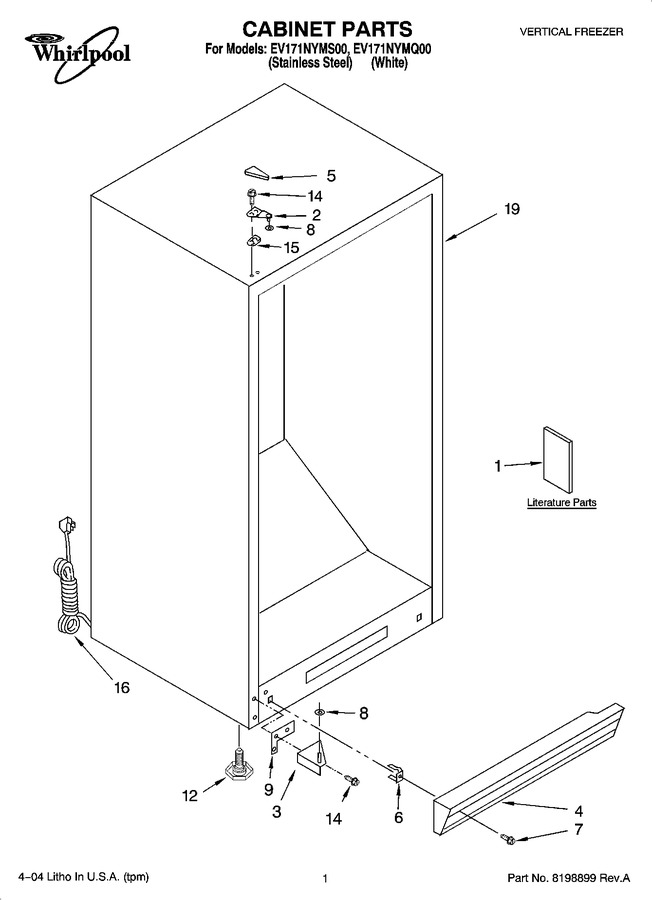

01 - Cabinet Parts
02 - Liner Parts
03 - Door Parts
04 - Unit Parts, Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT4390678 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT4390909 | Literature Parts (energy Guide) |
|
- | |||||
| 2 | 4390673 | Top, Hinge (white) |
|
- | |||||
| 2 | 4390762 | Top Hinge (black) |
|
$ 14.73 | |||||
| 3 | 4390749 | Bottom Hinge (white) |
|
- | |||||
| 3 | 4390824 | Bottom Hinge (black) |
|
- | |||||
| 4 | 4390761 | Grille (black (includes 6 & 7)) |
|
- | |||||
| 4 | WP4-60461-005 | Grille (white) (Replaces: 4357251) |
|
$ 117.48 | |||||
| 5 | 4390763 | Hinge Cover (black) |
|
$ 31.92 | |||||
| 5 | 4357279 | Hinge Cover (white) |
|
$ 46.56 | |||||
| 6 | 1-80247-101 | Clip, Grille (Replaces: 4356803) |
|
Immediately | $ 11.50 | ||||
| 7 | WP489478 | Screw (Replaces: 4357243) |
|
$ 8.18 | |||||
| 8 | W10851331 | Washer (Replaces: 4390520) |
|
$ 10.57 | |||||
| 9 | 4356828 | Shim, Bottom |
|
$ 12.40 | |||||
| 12 | W11117769 | Leg, Leveller (Replaces: 4390567) |
|
Immediately | $ 19.37 | ||||
| 14 | WP8204624 | Screw (Replaces: 4356830) |
|
$ 17.48 | |||||
| 15 | 4390489 | Shim, Hinge |
|
$ 7.30 | |||||
| 16 | 4390915 | Power Cord |
|
- | |||||
| 19 | N/A | Cabinet (not A Serviceable Part) |
|
- |
