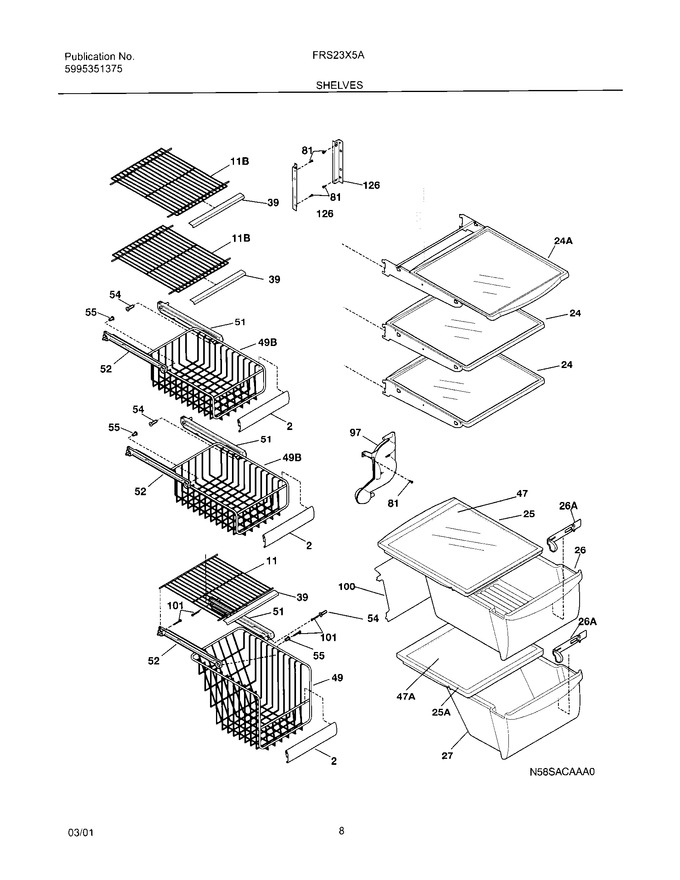

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	240339601		Trim-basket		Appelez-nous	-
11	241657601		Shelf-freezer,flip-up   (Replaces: 240338801)				$ 88.31
11	240338703		Shelf-freezer,fixed Wire		Appelez-nous	-
24	240355277		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350107)				$ 237.63
24	240355211		Shelf-``spill-safe``,fixed				$ 224.07
25	240354602		Cover-crisper Pan,lower   (Replaces: 240354601)				$ 98.29
25	240354502		Cover-crisper Pan,upper   (Replaces: 240354501)			Immediately	$ 111.13
26	240354723		Pan-crisper,upper   (Replaces: 240354705)			Immediately	$ 182.57
26	240351101		Control-humidity				$ 48.83
27	240354805		Pan-crisper,lower				$ 186.32
39	240367701		Trim-shelf,front		Appelez-nous	-
47	240350614		Insert-pan Cover,glass				$ 161.78
47	240350613		Insert-pan Cover,glass   (Replaces: 240350635)				$ 137.35
49	240338401		Basket-sliding		Appelez-nous	-
49	240338501		Basket-sliding,upper ,half		Appelez-nous	-
51	240343001		Hanger-basket,rh		Appelez-nous	-
52	240343101		Hanger-basket,lh		Appelez-nous	-
54	240351901		Plug-hanger,right Hand		Appelez-nous	-
55	240352001		Plug-hanger,left Hand		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 15.75
97	240322001		Water Tank		Appelez-nous	-
100	240326303		Cover-water Tank   (Replaces: 240326301)				$ 68.09
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 14.96
126	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
126	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
NI	240362101		Clip-slide,cover-crisper				$ 52.25
NI	240349801		Clip-slide,pan-crisper				$ 22.75
