SELECT A DIAGRAM
New Model Search:

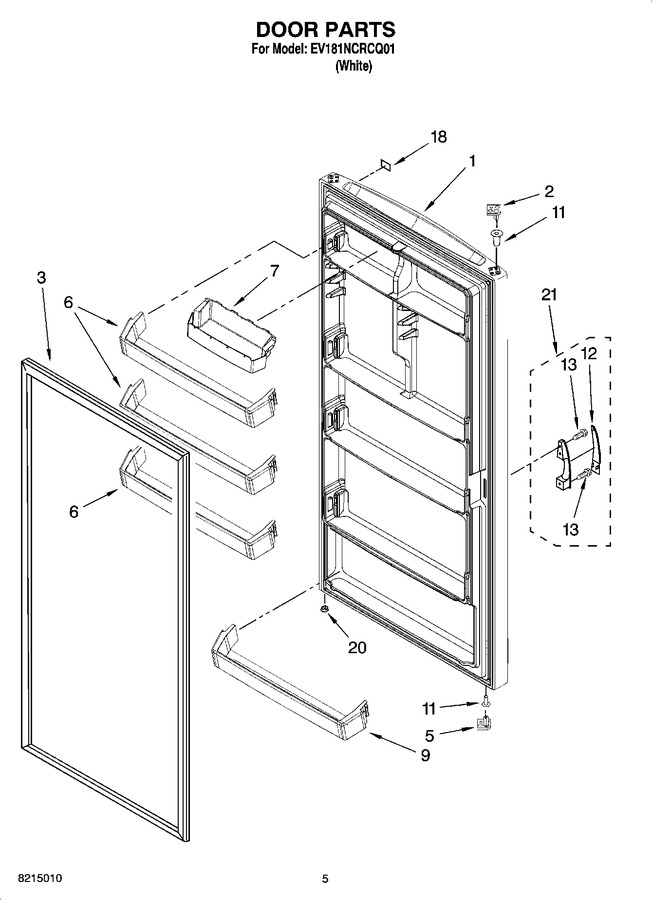

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210438 | Exterior Door Assembly (includes Interior Panel) (white) |
|
- | |||||
| 2 | 8210401 | Stop, Door (upper) |
|
- | |||||
| 3 | 8210338 | Gasket (white) |
|
$ 160.23 | |||||
| 5 | 8210400 | Stop, Door (lower) |
|
- | |||||
| 6 | 8210397 | Rail, Door (upper) |
|
- | |||||
| 7 | 8210440 | Bin, Door (2) |
|
- | |||||
| 9 | 8210439 | Rail, Door (gallon) |
|
- | |||||
| 11 | 4390731 | Bushing (top & Bottom) |
|
$ 19.69 | |||||
| 12 | 4390668 | Insert, Handle |
|
- | |||||
| 13 | WP489491 | Screw (Replaces: 4390669) |
|
$ 7.30 | |||||
| 18 | WP2213265 | Nameplate (white) (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 20 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 11.34 | |||||
| 21 | 4390667 | Handle Assembly |
|
- |
