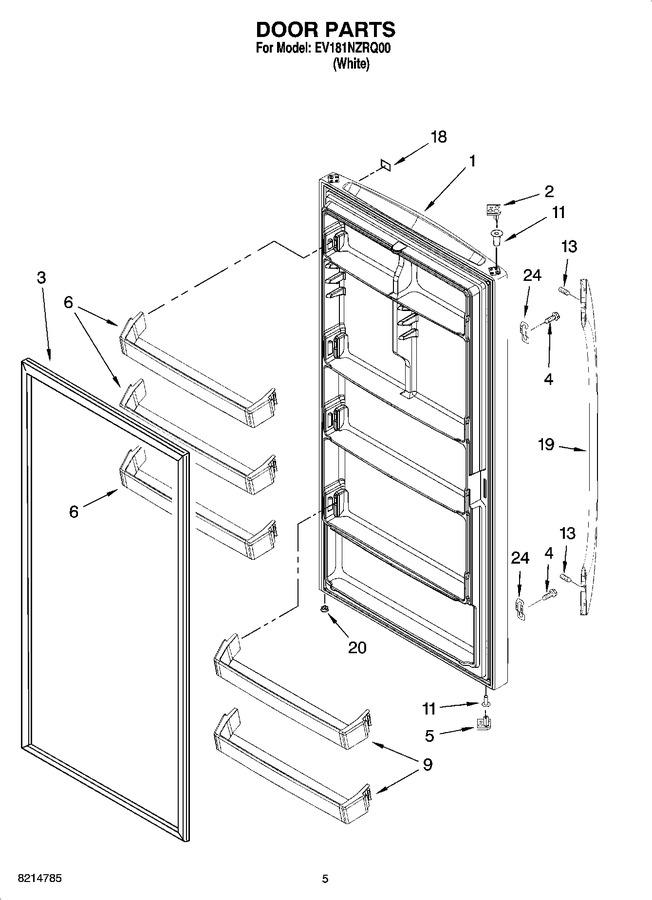

03 - Door Parts
04 - Unit Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210359 | Exterior Door Assembly (includes Interior Panel) (white) |
|
$ 396.42 | |||||
| 2 | 8210401 | Stop, Door (upper) |
|
- | |||||
| 3 | WP4-65151-002 | Gasket (white) (Replaces: 8210339) |
|
$ 377.13 | |||||
| 4 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 5 | 8210400 | Stop, Door (lower) |
|
- | |||||
| 6 | W10737497 | Rail, Door (upper) (Replaces: 8210385) |
|
$ 96.74 | |||||
| 9 | 8210379 | Rail, Door (lower) |
|
- | |||||
| 11 | 4390731 | Bushing (top & Bottom) |
|
$ 19.69 | |||||
| 13 | 8533920 | Screw |
|
$ 5.27 | |||||
| 18 | 4390656 | Nameplate (white) |
|
- | |||||
| 19 | 2313345W | Handle (white) |
|
- | |||||
| 20 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 11.34 | |||||
| 24 | WP2255411 | Clip, Handle (Replaces: 2255411) |
|
$ 36.55 |
