SELECT A DIAGRAM

01 - Cabinet Parts

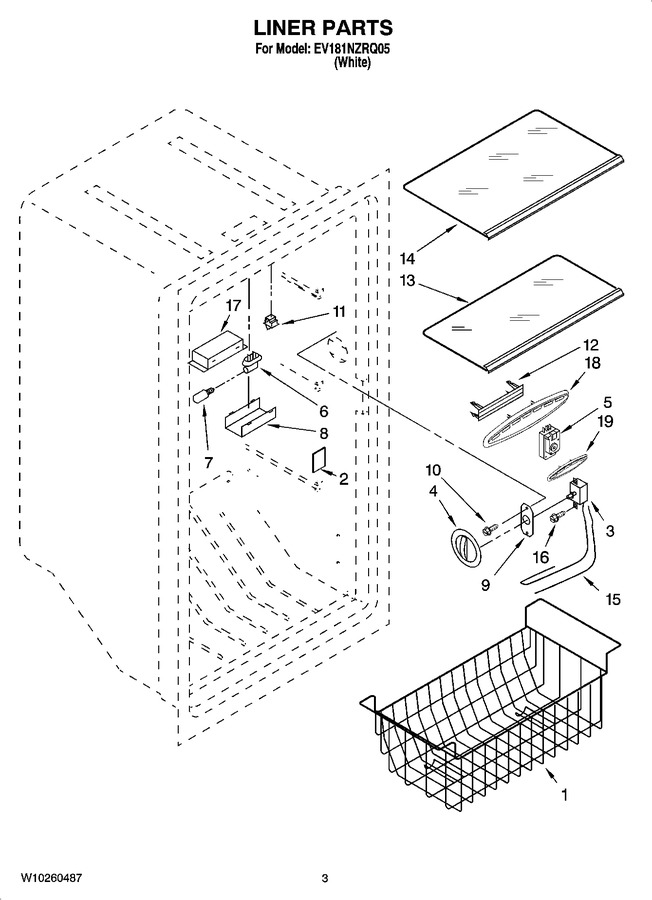

02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390621		Basket		Appelez-nous	-
2	1-60123-001		Cover, Icemaker Hole   (Replaces: 4390649)				$ 80.09
3	WP4-83053-003		Thermostat   (Replaces: 8210311)				$ 254.96
4	4390619		Knob, Thermostat		Appelez-nous	-
5	WP3-81329		Timer, Defrost   (Replaces: 4357124)			Immediately	$ 199.14
6	WP3-82393-001		Lamp, Socket   (Replaces: 8210350)				$ 112.73
7	W11679940		Bulb   (Replaces: 4390465)			Immediately	$ 11.30
8	4390743		Light Shield		Appelez-nous	-
9	1-81154		Thermostat, Plate   (Replaces: 4357041)				$ 15.00
10	W11233072		Screw   (Replaces: 4357043)			Immediately	$ 14.72
11	W11384469		Light, Switch   (Replaces: 4390513)			Immediately	$ 39.09
12	WP3-80414-103		Vent Plug   (Replaces: 4357295)				$ 13.50
13	4390817		Shelf, Middle (2)				$ 113.01
14	4390816		Shelf, Top (2)		Appelez-nous	-
15	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 8.35
16	W11233072		Screw   (Replaces: 4357043)			Immediately	$ 14.72
17	4390744		Bracket, Light		Appelez-nous	-
18	W10258753		Diffuser, Air Upr		Appelez-nous	-
19	4-82573-002		Diffuser, Air Lwr   (Replaces: W10258754)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
