SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)

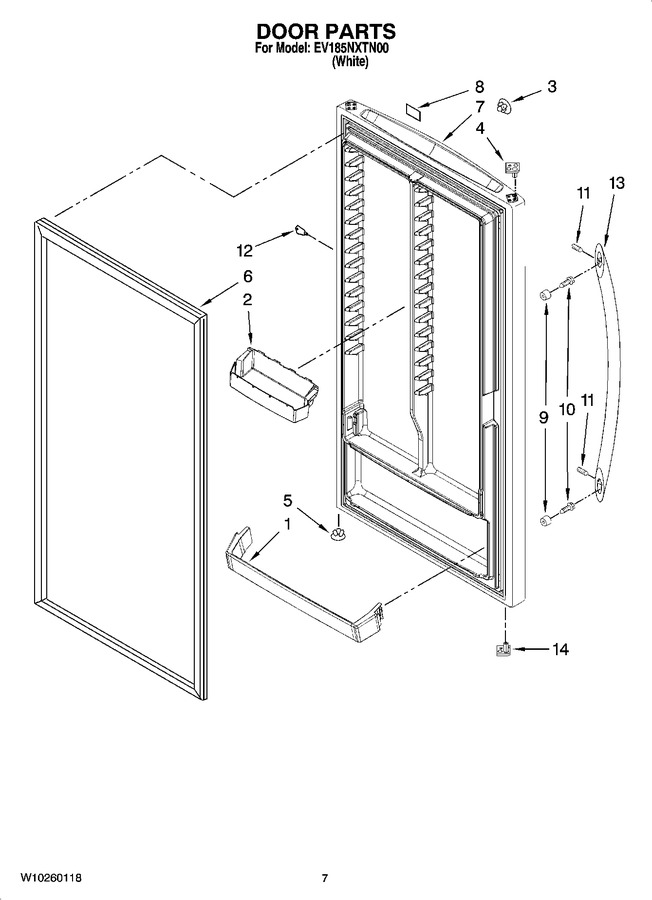

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210379		Rail, Door (1)		Appelez-nous	-
2	W10179592		Bin, Door (7)		Appelez-nous	-
3	WP2189000		Plug, Door (wh)   (Replaces: 4390596)			Immediately	$ 7.77
4	8210401		Stop, Door (upper)		Appelez-nous	-
5	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 11.34
6	W10260543		Gasket, Door		Appelez-nous	-
7	8210362		Door Assembly (includes Interior Door Liner)		Appelez-nous	-
8	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
9	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
10	WP488163		Screw   (Replaces: 488208)				$ 7.92
11	8533976		Screw				$ 8.35
12	WP4356840		Key   (Replaces: 4356840)				$ 11.28
13	W10254163		Handle Assembly Includes Item 11)				$ 30.26
14	8210400		Stop, Door (lower)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
