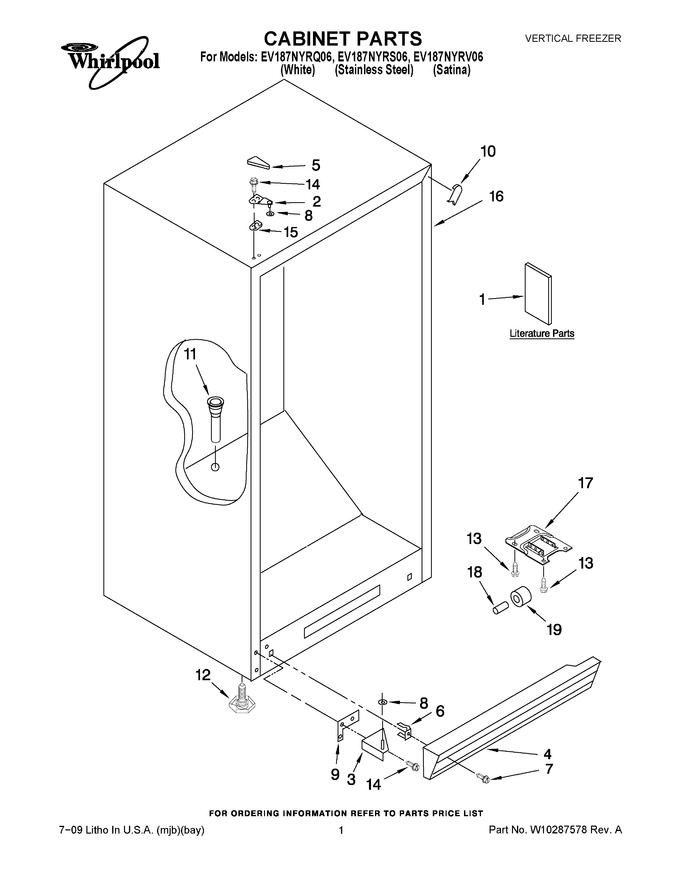

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210432		Owners Manual		Appelez-nous	-
1	8210345		Energy Guide/tag		Appelez-nous	-
2	2-81016-105		Top Hinge (white)   (Replaces: 8210222)				$ 41.18
2	8210251		Top Hinge (black)				$ 152.33
3	8210235		Bottom Hinge (black)		Appelez-nous	-
3	8210223		Bottom Hinge (white)		Appelez-nous	-
4	8210294		Grille (black (includes 6 & 7))				$ 82.87
4	WP4-60461-005		Grille (white)   (Replaces: 8210290)				$ 111.89
5	4390763		Hinge Cover (black)				$ 31.92
5	4357279		Hinge Cover (white)				$ 46.56
6	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 10.95
7	WP489478		Screw   (Replaces: 4357243)				$ 7.75
8	W10851331		Washer   (Replaces: 4390520)				$ 10.57
9	4390489		Shim, Bottom				$ 6.95
10	8210227		Filler, Corner (white)		Appelez-nous	-
10	8210228		Filler, Corner (black)		Appelez-nous	-
11	W10164544		Grommet, Drain		Appelez-nous	-
12	WP3-82710-001		Leg, Leveller (white)   (Replaces: W10177675)			Immediately	$ 20.32
12	WP3-82710-001		Leg, Leveller (black)   (Replaces: W10177676)			Immediately	$ 20.32
13	WP3-24838-048		Screw   (Replaces: 4357277)				$ 7.78
14	WP8204624		Screw   (Replaces: 4356830)				$ 16.65
15	4390489		Shim, Hinge				$ 6.95
16	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
17	8210265		Bracket, Roller		Appelez-nous	-
18	4390755		Axle				$ 13.86
19	3-60315-001		Roller, Front   (Replaces: 4390754)				$ 31.32
