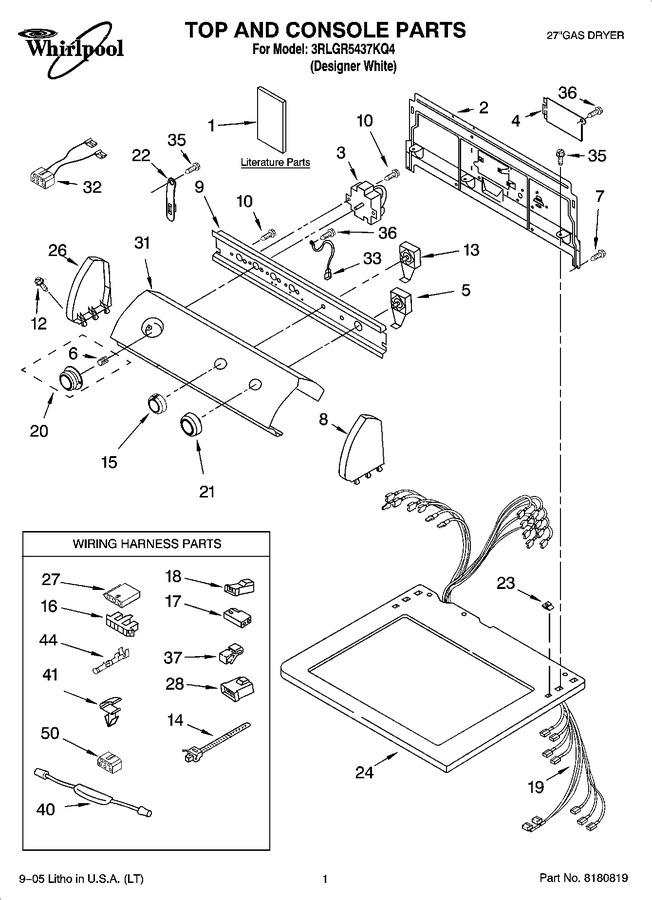

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 3402853 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8543156		Guide, Use & Care		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	8315975		Guide, User & Installation (uk)		Appelez-nous	-
1	8299808		Wiring Diagram		Appelez-nous	-
1	8528096		Instructions, Installation		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
2	285909		Panel, Rear Console   (Replaces: 8317305)				$ 248.97
3	8299770		Timer				$ 151.92
4	WPW10119283		Cover, Terminal Block   (Replaces: 8317342)				$ 128.35
5	WP3395382		Switch, Push-to-start   (Replaces: 3395382)			Immediately	$ 43.80
6	WP688805		Spring Clip, Knob   (Replaces: 688805)			Immediately	$ 7.81
7	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
8	8271363		Cap, End (r.h.)		Appelez-nous	-
9	8271316		Bracket, Control		Appelez-nous	-
10	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
12	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
13	3399638		Switch, Temperature				$ 129.75
14	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
15	WP3957799		Knob, Control   (Replaces: 3957799)				$ 52.44
16	3397269		Connector, Timer				$ 25.55
17	717252		Receptacle, 2 Way		Appelez-nous	-
18	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
19	8529869		Harness, Wiring		Appelez-nous	-
20	WP3957754		Timer Knob Assembly   (Replaces: 3957754)				$ 59.87
21	3957804		Knob, Push-to-start				$ 50.37
22	WP8568314		Strap, Console   (Replaces: 8568314)				$ 7.78
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
24	8271399		Top		Appelez-nous	-
26	8271369		Cap, End (l.h.)		Appelez-nous	-
27	3936144		Connector				$ 20.21
28	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
31	8318382		Panel, Control		Appelez-nous	-
32	8283286		Wire, Jumper Assembly   (Replaces: 8283293)		Appelez-nous	-
33	3398893		Wire, Ground		Appelez-nous	-
35	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
36	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
37	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
40	279872		Resistor, Assembly   (Replaces: 8283170)				$ 74.94
41	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
44	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
50	3347243		Connector 6-circuit		Appelez-nous	-
