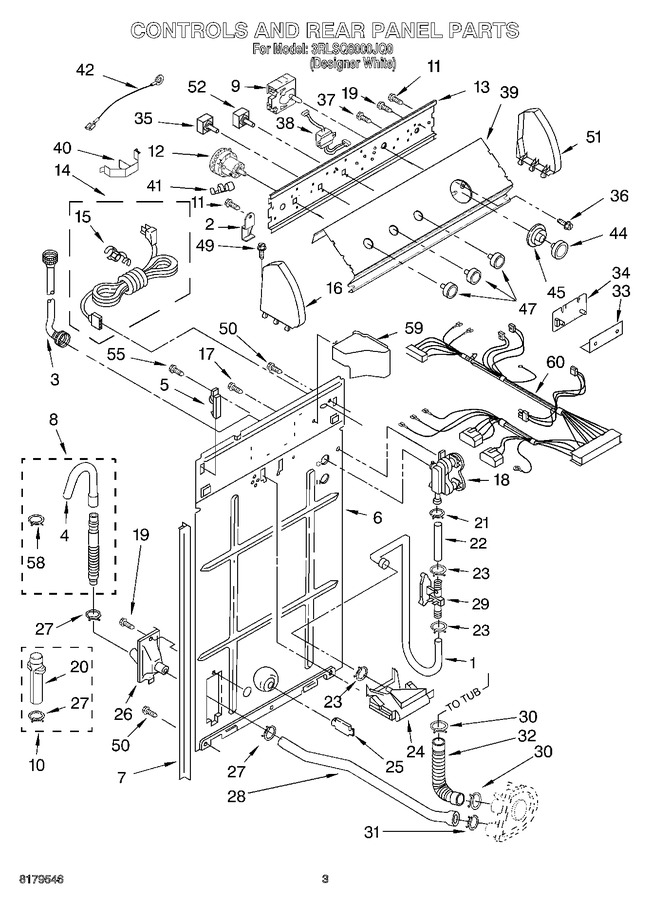

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3349365		Hose, Sensor (upper)   (Replaces: 3349365)				$ 22.41
2	8283343		Retainer, Harness		Appelez-nous	-
3	WPW10615831		Hose, Water Inlet (red)   (Replaces: 3949382)				$ 103.65
3	WPW10615809		Hose, Water Inlet (blue)   (Replaces: 3949383)				$ 104.71
4	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 97.86
5	387402		Hinge, Console (2)				$ 5.84
6	8318405		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 63.94
9	3954727		Timer, Control (50 Hz.) (motor Not A Service Part)		Appelez-nous	-
10	285750		(kit-adapter) (includes Items 20 And 27)		Appelez-nous	-
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 8.25
12	W10820051		Switch, Water Level   (Replaces: 3366848)			Immediately	$ 169.68
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 122.00
14	8316047		Cord, Power		Appelez-nous	-
15	3949468		Strain Relief, Power Cord		Appelez-nous	-
16	8271369		Cap, End (l.h.)		Appelez-nous	-
17	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
18	WP3360397		Valve, Water Mixing   (Replaces: 3360397)				$ 302.44
19	WP3351614		Screw, 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 7.30
20	3363920A		Adapter-drain Hose   (Replaces: 3363920)				$ 9.23
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
22	WP3357319		Hose, Vacuum Break   (Replaces: 3357319)				$ 28.57
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 19.85
26	WPW10358149		Connector, Drain Hose   (Replaces: 3361809)			Immediately	$ 48.16
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
28	3359816		Hose, Pump To Drain Connector		Appelez-nous	-
29	3352282		Sensor, Inline				$ 66.68
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 8.58
31	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
32	285871		Hose, Pump To Tub   (Replaces: 3951449)			Immediately	$ 28.99
33	3954595		Shield, Atc		Appelez-nous	-
34	WPW10110247		Control, Atc   (Replaces: 3407159)				$ 135.91
35	WPW10168262		Switch, Rotary (2nd Rinse)   (Replaces: 3949187)				$ 136.25
36	W10915367		Screw, Timer Mounting   (Replaces: 3400808)		Appelez-nous	-
37	WP3400064		Screw   (Replaces: 3400064)				$ 7.30
38	3407160		Transformer		Appelez-nous	-
39	8318786		Panel, Console		Appelez-nous	-
40	8055003		Clip, Harness & Pressure Hose				$ 36.24
41	W10113937		Clip, Grounding   (Replaces: 357572)				$ 11.37
42	3398893		Wire, Ground		Appelez-nous	-
44	W10807860		Knob, Timer   (Replaces: 8271345)			Immediately	$ 52.47
45	WP3957849		Dial, Timer   (Replaces: 8271351)				$ 48.07
47	WP3957799		Knob, Control   (Replaces: 8271339)				$ 55.06
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 9.29
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
51	8271363		Cap, End (r.h.)		Appelez-nous	-
52	8526791		Switch, Rotary (temperature)		Appelez-nous	-
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
58	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 8.19
59	3950571		Shield, Suds		Appelez-nous	-
60	3954798		Harness, Wiring (for Detail See Parts Page)		Appelez-nous	-
